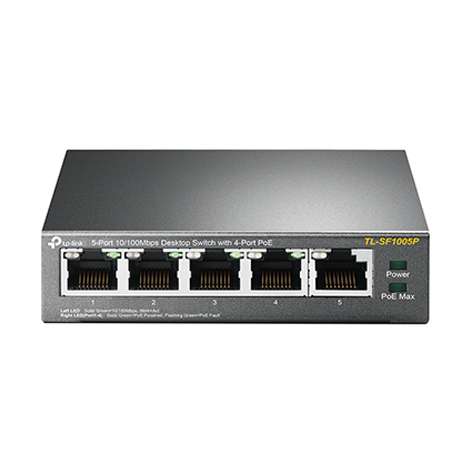

TP-Link TL-SF1005LP 5-Port 10-100Mbps 4-Port PoE Desktop Switch

The TP-Link TL-SF1005LP 5-Port 10-100Mbps 4-Port PoE Desktop Switch 510/100 Mbps RJ45 anchorages With four PoE anchorages, transfers data and power on one single string Working with IEEE802.3 af biddable PDs, expands home and office network Supports PoE Power up to15.4 W for each PoE harborage Supports PoE Power up to 58W for all PoE anchorages Requires no configuration and installation, TL- SF1005P is a510/100 Mbps anchorages unmanaged switch that requires no configuration and provides 4 PoE( Power over Ethernet) anchorages. It can automatically descry and supply power with all IEEE802.3 af biddable Powered bias( PDs). In this situation, the electrical power is transmitted along with data in one single string allowing you to expand your network to where there are no power lines or outlets, where you wish to fix bias similar as APs, IP Cameras or IP Phones, etc. 4 of the 5 bus- concession RJ45 anchorages( Port 1 to Port 4) of the switch support Power over Ethernet( PoE) function. These PoE anchorages can automatically descry and supply power with those IEEE802.3 af biddable Powered bias( PDs).

Overload Arrangement
TL- SF1005P has the precedence function which will help cover the system when the system power isoverloaded.However, a precedence will be arranged among the PoE anchorages, also the system will cut off the power of the smallest- precedence harborage, If all PoE PDs power consumption is> = 58W.

Port Priority Function
Priority( harborage- 1 = harborage- 2 = harborage- 3> harborage- 4) This function will help to insure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an illustration, Port 1, 2 and 4 is using15.4 W( maximum power for per harborage is15.4 W); the system power is46.2 W intotal.However, and also the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, If there's an fresh PD fitted to Port 3 with 12W.4 W, and Port3 will use 12W, no power will be supplied to Port 4.TP-Link TL-SF1005LP 5-Port 10-100Mbps 4-Port PoE Desktop Switch With 01 Year warranty.
