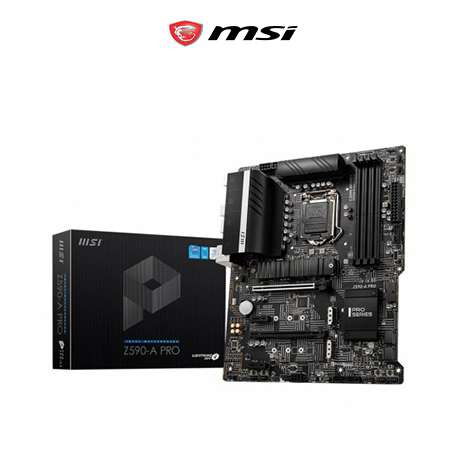

MSI Z590-A PRO Intel 10th Gen/ 11th Gen DDR4 ATX Motherboard

Offer Price: BDT 16,400.00

Regular Price: BDT 28,000.00

Out of stock
Product Code: 1780

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: MSI
  • Model: Z590-A PRO
  • Chipset: Intel Z590 Chipset
  • Memory Channel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • MSI Z590-A PRO Intel 10th Gen/ 11th Gen DDR4 ATX Motherboard best price in BD,MSI Z590-A PRO Intel 10th Gen/ 11th Gen DDR4 ATX Motherboard price in Bangladesh

Basic Info

Brand Name

MSI

Model No.

 Z590-A PRO

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z590 Chipset

CPU  Supported

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium® Gold and Celeron Processors

Generation

10th/ 11th  Generation

Memory

Memory Type

DDR4

Memory MHz

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)

Channel

Dual

Slot

4 x DDR4 memory slots

Max. Memory

128GB

Storage

Storage Interface

- 6x SATA 6Gb/s ports (from B560 chipset) 1
- 3x M.2 slots (Key M)
- M2_1 slot (from CPU)
- Available only on 11th Gen Intel CPU
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
-M2_21 slot (from B560 chipset)
- Supports up to PCIe 3.0 x4
- Supports SATA up to 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_3 slot (from B560 chipset)
- Supports up to PCIe 3.0 x4

Graphics Info

PCI Express Slot

2x PCIe x16 slots
- Support x16/ x4
- PCI_E1 (from CPU)
- Supports up to PCIe 4.0 for 11th Gen Intel® CPU
- Supports up to PCIe 3.0 for 10th Gen Intel® CPU
- PCI_E3 (from Z590 chipset)
- Supports up to PCIe 3.0
- 2x PCIe 3.0 x1 slots (from Z590 chipset)

Type

Integrated

Audio Chipset.

1x Front panel audio connector

Ports & Connectivity

USB Port

Intel Z590 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
- 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors)
USB 2.0 Hubs GL850G
- 4x USB 2.0 Type-A ports on the back panel
- 4x USB 2.0 ports are available through the internal USB 2.0 connectors

Back Ports

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector

Technical Info

Form Factor

ATX

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

MSI Z590-A PRO Intel 10th Gen/ 11th Gen DDR4 ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards. Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket Supports DDR4 Memory, up to 5333(OC) MHz Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds Audio Boost: Reward your ears with studio grade sound quality Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

MSI Z590-A PRO Intel 10th Gen/ 11th Gen DDR4 ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards. Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket Supports DDR4 Memory, up to 5333(OC) MHz Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds Audio Boost: Reward your ears with studio grade sound quality Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
