Basic Info

Brand Name

MSI

Model No.

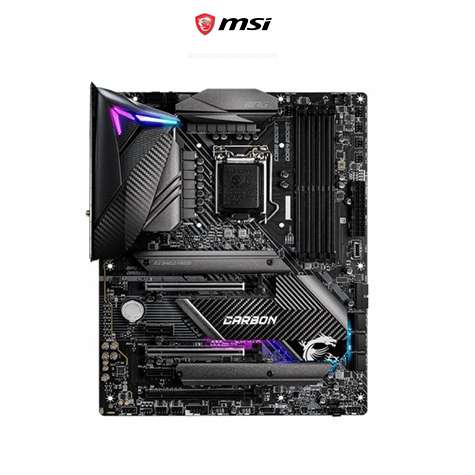

MSI Z490 Gaming Carbon Wi-Fi

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z490 Chipset

CPU  Supported

Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket

Generation

10^th  Generation

Memory

Memory Type

DDR4

Memory MHz

2133/ 2666/ 3200 MHz

Channel

Dual

Slot

4x DDR4 memory slots

Max. Memory

128GB

Storage

Storage Interface

Intel Z490 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready

Graphics Info

PCI Express Slot

3x PCIe 3.0 x16 slots, support x16/ x0/ x4 or x8/ x8/ x4 mode
2x PCIe 3.0 x1 slots

Type

Integrated

Audio Chipset.

Realtek ALC1220 Codec

Ports & Connectivity

USB Port

Intel Z490 Chipset
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C internal connector)
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
ASMedia ASM3241 Chipset
1x USB 3.2 Gen 2x2 20Gbps port on the back panel

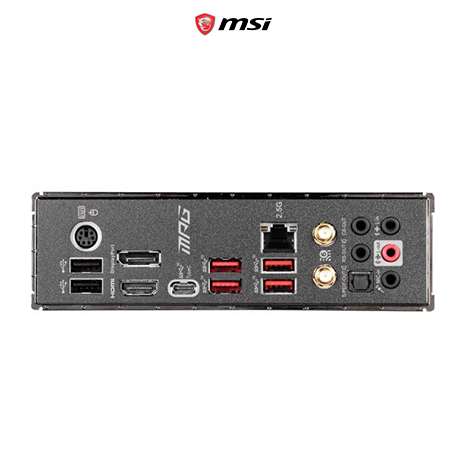

Back Ports

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors

Technical Info

Form Factor

ATX Form Factor

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
