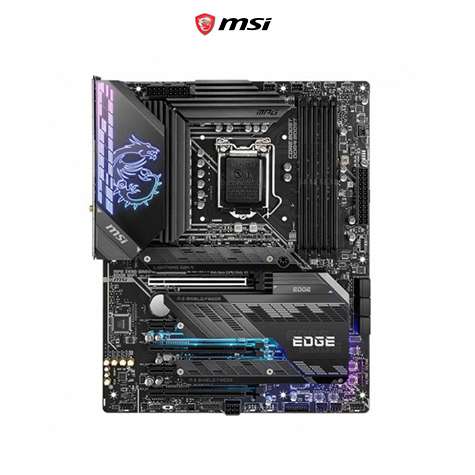

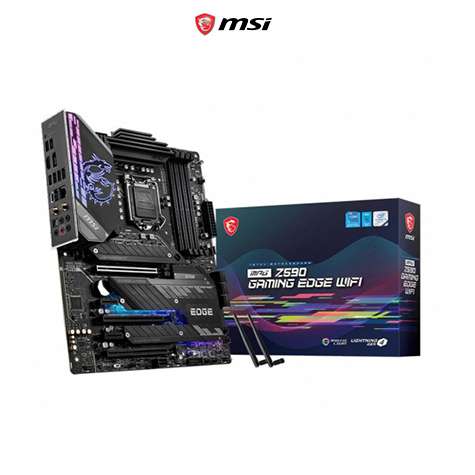

MSI MPG Z590 GAMING EDGE WIFI 10th/ 11th Gen DDR4 M-ATX Motherboard

Offer Price: BDT 36,300.00

Regular Price: BDT 39,000.00

Out of stock
Product Code: 1807

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: MSI
  • Model: MPG Z590 GAMING EDGE WIFI
  • Chipset: Intel Z590 Chipset
  • Memory Channel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • MSI MPG Z590 GAMING EDGE WIFI 10th/ 11th Gen DDR4 M-ATX Motherboard best price in BD,MSI MPG Z590 GAMING EDGE WIFI 10th/ 11th Gen DDR4 M-ATX Motherboard price in Bangladesh

Basic Info

Brand Name

MSI

Model No.

MPG Z590 GAMING EDGE WIFI

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z590 Chipset

CPU  Supported

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200

Generation

10th/ 11th  Generation

Memory

Memory Type

DDR4

Memory MHz

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)

Channel

Dual

Slot

4x DDR4 memory slots

Max. Memory

128GB

Storage

Storage Interface

6x SATA 6Gb/s ports (From Z590 Chipset)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Available only on 11th Gen Intel CPU
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 & M2_3 slot (From Z590 Chipset)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors

Graphics Info

PCI Express Slot

3x PCIe x16 slots
Support x16/x4/x4
PCI_E1 (From CPU)
Supports up to PCIe 4.0 for 11th Gen Intel CPU
Supports up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3 & PCI_E5 (From Z590 Chipset)
Support up to PCIe 3.0
2x PCIe 3.0 x1 slots (From Z590 Chipset)

Type

Integrated

Audio Chipset.

Realtek ALC4080

Ports & Connectivity

USB Port

Intel Z590 Chipset
1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors)
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel)
Hub-GL850G
6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)

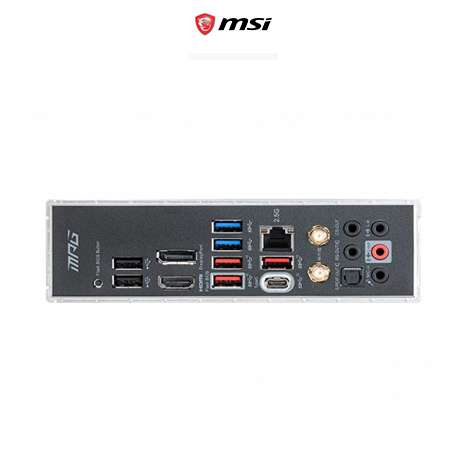

Back Ports

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors

Technical Info

Form Factor

ATX Form Factor

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

MSI MPG Z590 GAMING EDGE WIFI 10th/ 11th Gen DDR4 M-ATX Motherboard

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z590. Easy to enable XMP profile with auto power settings to get the best memory speed and stability. Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket Supports DDR4 Memory, up to 5333(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Pre-installed I/O Shield: Better EMI protection and more convenience for installation

MSI MPG Z590 GAMING EDGE WIFI 10th/ 11th Gen DDR4 M-ATX Motherboard

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z590. Easy to enable XMP profile with auto power settings to get the best memory speed and stability. Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket Supports DDR4 Memory, up to 5333(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Pre-installed I/O Shield: Better EMI protection and more convenience for installation
