MSI MPG Z590 Gaming Carbon WiFi Intel 10th/ 11th Gen DDR4 ATX Motherboard

Offer Price: BDT 35,000.00

Regular Price: BDT 40,000.00

Out of stock
Product Code: 1808

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: MSI
  • Model: MPG Z590 Gaming Carbon WiFi
  • Chipset: Intel Z590 Chipset
  • Memory Channel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • MSI MPG Z590 Gaming Carbon WiFi Intel 10th/ 11th Gen DDR4 ATX Motherboard best price in BD,MSI MPG Z590 Gaming Carbon WiFi Intel 10th/ 11th Gen DDR4 ATX Motherboard price in Bangladesh,MSI MPG Z590 Gaming Carbon WiFi Intel 10th/ 11th Gen DDR4 ATX Motherboard latest price in 2022

Basic Info

Brand Name

MSI

Model No.

MPG Z590 Gaming Carbon WiFi

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z590 Chipset

CPU  Supported

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200

Generation

10th/ 11th  Generation

Memory

Memory Type

DDR4

Memory MHz

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)

Channel

Dual

Slot

4x DDR4 memory slots

Max. Memory

128GB

Storage

Storage Interface

6x SATA 6Gb/s ports (From Z590 Chipset)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Available only on 11th Gen Intel CPU
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 & M2_32 slot (From Z590 Chipset)
Supports PCIe 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready

Graphics Info

PCI Express Slot

3x PCIe x16 slots
2x PCIe 3.0 x1 slots (From Z590 Chipset)

Type

Integrated

Audio Chipset.

7.1-Channel High Definition Audio

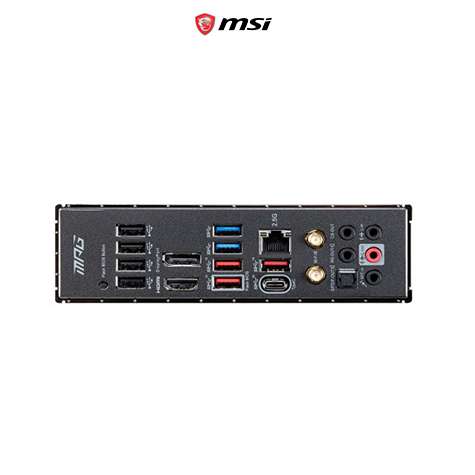

Ports & Connectivity

USB Port

1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)
4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)

Back Ports

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector

Technical Info

Form Factor

ATX Form Factor

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

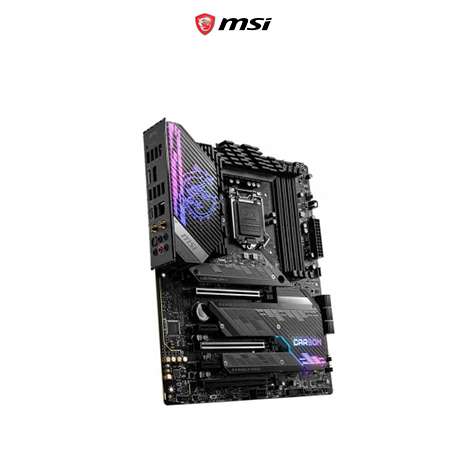

MSI MPG Z590 Gaming Carbon WiFi Intel 10th/ 11th Gen DDR4 ATX Motherboard

This is a premium solution for demanding users. MSI MPG Z590 Gaming Carbon WiFi ATX Motherboard Supports 11th and 10th Gen Intel Core, Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) & provides Lightning Fast Game experience, like- MHz PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. This Motherboard Designed with 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost. Here, Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance system and non-stop gaming experience. This Motherboard comes with 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It also has 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution that Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Here, the AUDIO BOOST 5 that rewards your ears with studio grade sound quality for the most immersive gaming experience, High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.

MSI MPG Z590 Gaming Carbon WiFi Intel 10th/ 11th Gen DDR4 ATX Motherboard

This is a premium solution for demanding users. MSI MPG Z590 Gaming Carbon WiFi ATX Motherboard Supports 11th and 10th Gen Intel Core, Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) & provides Lightning Fast Game experience, like- MHz PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. This Motherboard Designed with 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost. Here, Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high-performance system and non-stop gaming experience. This Motherboard comes with 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It also has 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution that Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Here, the AUDIO BOOST 5 that rewards your ears with studio grade sound quality for the most immersive gaming experience, High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.
