Basic Info

Brand Name

MSI

Model No.

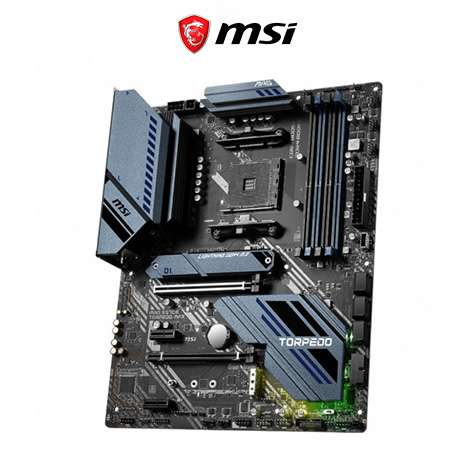

MAG X570S TORPEDO MAX

CPU Details

Chipset Brand

AMD

Chipset Model

AMD X570 Chipset

CPU  Supported

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports Socket AM4

Generation

2^nd/3^rd/4^th/5^th Generation

Memory

Memory Type

DDR4

Memory MHz

Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
Max overclocking frequency by A-XMP OC mode:
For Ryzen 5000 G-Series & 4000 G-Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 4000 MHz
2DPC 1R Max speed up to 4266 MHz
2DPC 2R Max speed up to 3600 MHz
For Ryzen 5000 Series & 3000 Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 3866 MHz
2DPC 1R Max speed up to 4000 MHz
2DPC 2R Max speed up to 3600 MHz

Channel

Dual

Slot

4x DDR4

Max. Memory

128GB

Storage

Storage Interface

6x SATA 6Gb/s ports (from AMD X570 Chipset)
2x M.2 slots (Key M)
Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors
Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
Supports up to SATA 6Gb/s
M2_1 slot (from Processor)
Support 2280/22110 storage devices
M2_2 slot (from AMD X570 Chipset)
Supports 2242/ 2260/ 2280 storage devices

Graphics Info

PCI Express Slot

Supports PCIe 4.0 / PCIe 3.0 specification
PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors
1x PCIe x16 slot (From processor)
PCI_E1 supports PCIe 4.0/ 3.0 x16
1x PCIe x16 slot (From X570 chipset)
PCI_E3 supports PCIe 4.0/ 3.0 x4
2x PCIe 3.0 x1 slots (From X570 chipset)

Type

Integrated

Audio Chipset.

Realtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

Ports & Connectivity

USB Port

AMD X570 Chipset
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

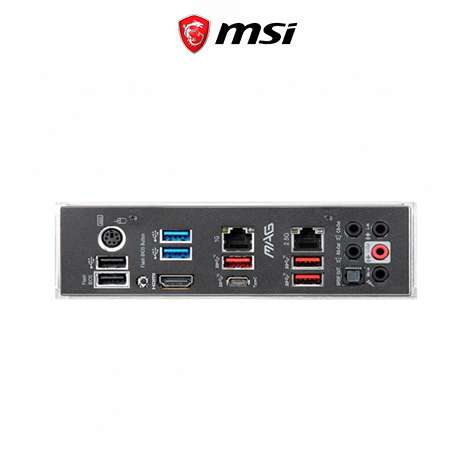

Back Ports

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x Clear CMOS jumper

Bios & Technical Info

BIOS Type

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS

Form Factor

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
