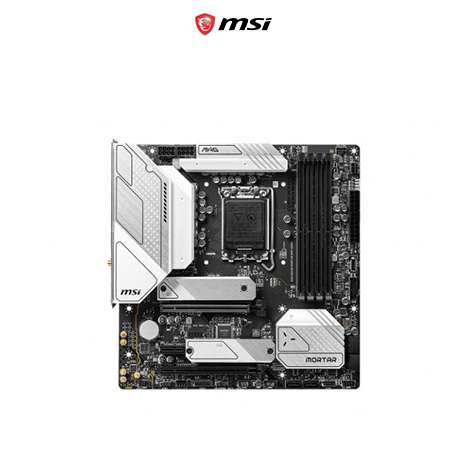

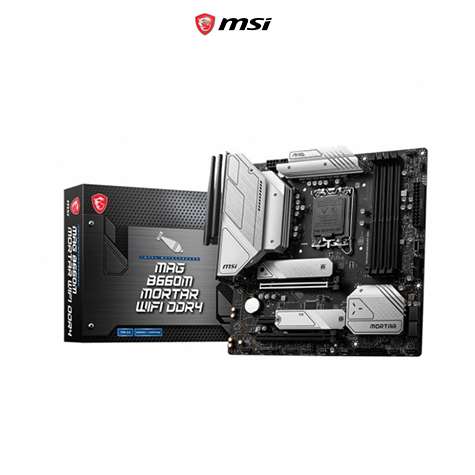

MSI MAG B660M MORTAR WIFI 12th Gen Micro-ATX Motherboard

Offer Price: BDT 25,500.00

Regular Price: BDT 26,980.00

Out of stock
Product Code: 1800

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: MSI
  • Model: MAG B660M MORTAR WIFI DDR4
  • Chipset: Intel B660 Chipset
  • Memory Channel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • MSI MAG B660M MORTAR WIFI 12th Gen Micro-ATX Motherboard price in BD,MSI MAG B660M MORTAR WIFI 12th Gen Micro-ATX Motherboard best price in Bangladesh

Basic Info

Brand Name

MSI

Model No.

MAG B660M MORTAR WIFI DDR4

CPU Details

Chipset Brand

Intel

Chipset Model

Intel B660 Chipset

CPU  Supported

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors
Processor socket LGA1700

Generation

12th  Generation

Memory

Memory Type

DDR4

Memory MHz

2133/ 2666/ 3200 MHz

Channel

Dual

Slot

4x DDR4 memory slots

Max. Memory

128GB

Storage

Storage Interface

4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1
2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s

Graphics Info

PCI Express Slot

2x PCIe x16 slots
1x PCIe 3.0 x16 slot (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
PCI_E3 (From Z590 chipset)
Support up to PCIe 3.0 x4
2x PCIe 3.0 x1 slots (From Z590 chipset)

Type

Integrated

Audio Chipset.

7.1-Channel High Definition Audio
Supports S/PDIF output

Ports & Connectivity

USB Port

Intel B660 Chipset
1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4x USB 2.0 ports on the back panel
USB Hub-GL3590
3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
USB Hub-GL850G
4x USB 2.0 ports available through internal connectors

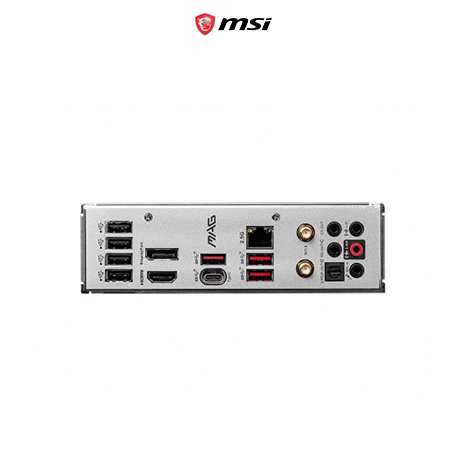

Back Ports

USB 2.0 Port
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT

Technical Info

Form Factor

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

MSI MAG B660M MORTAR WIFI 12th Gen Micro-ATX Motherboard

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. This motherboard comes with Premium Thermal Solution, so that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works and also this motherboard has 2.5G LAN and Intel Wi-Fi Solution, so that it helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. By Utilizing 12th Gen Intel processors, the MSI B660 motherboards feature with latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This motherboard designed with Lightning M.2, which helps to Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. It is also has Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 and also With Steel armor PCIe slots. Supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for Gamers.

MSI MAG B660M MORTAR WIFI 12th Gen Micro-ATX Motherboard

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. This motherboard comes with Premium Thermal Solution, so that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works and also this motherboard has 2.5G LAN and Intel Wi-Fi Solution, so that it helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. By Utilizing 12th Gen Intel processors, the MSI B660 motherboards feature with latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This motherboard designed with Lightning M.2, which helps to Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. It is also has Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 and also With Steel armor PCIe slots. Supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for Gamers.
