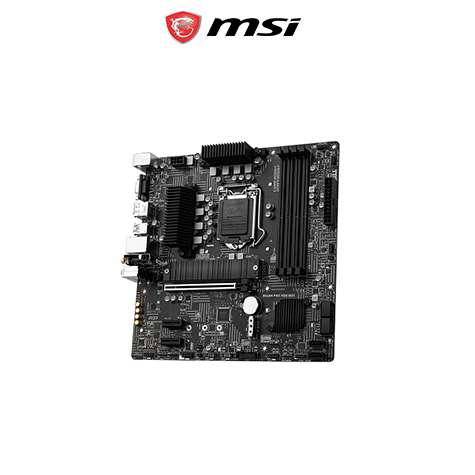

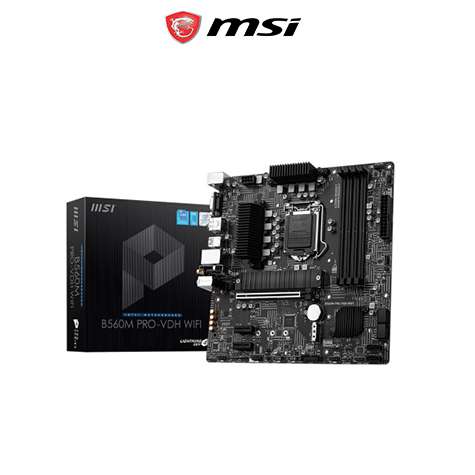

MSI B560M PRO-VDH WIFI Intel 10th/ 11th Gen DDR4 Micro ATX Motherboard

Offer Price: BDT 14,999.00

Regular Price: BDT 15,800.00

In stock
Product Code: 1767

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: MSI
  • Model: B560M PRO-VDH WIFI
  • Chipset: Intel B560 chipset
  • Memory Channel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • MSI B560M PRO-VDH WIFI Intel 10th/ 11th Gen DDR4 Micro ATX Motherboard best price in BD,MSI B560M PRO-VDH WIFI Intel 10th/ 11th Gen DDR4 Micro ATX Motherboard price in Bangladesh

Basic Info

Brand Name

MSI

Model No.

B560M PRO-VDH WIFI

CPU Details

Chipset Brand

Intel

Chipset Model

Intel B560 chipset

CPU  Supported

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors
Processor socket LGA1200

Generation

10th/ 11th  Generation

Memory

Memory Type

DDR4

Memory MHz

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)

Channel

Dual

Slot

4x DDR4 memory slots

Max. Memory

128GB

Storage

Storage Interface

- 6x SATA 6Gb/s ports (From B560 chipset)
- 2x M.2 slot (Key M)
- M2_1 slot
- Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
- Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot2 (from B560 chipset)
- Supports up to PCIe 3.0 x4
- Supports 2242/ 2260/ 2280 storage devices

Graphics Info

PCI Express Slot

1x PCIe x16 slot (From CPU)
PCI_E1 (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 chipset)

Type

Integrated

Audio Chipset.

7.1-Channel High Definition Audio

Ports & Connectivity

USB Port

2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors

Back Ports

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector

Technical Info
BIOS 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language

Form Factor

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

MSI B560M PRO-VDH WIFI Intel 10th/ 11th Gen DDR4 Micro ATX Motherboard

The MSI B560M PRO-VDH WIFI MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the newest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO Series motherboards feature plenty of possibilities for prosumers’ needs. Stable LAN, faster storage and USB transfer speed, and other expandable connectors are able to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive thanks to controlling additional RGB strips and other RGB peripherals added to a system, without having a separate RGB controller. MSI B560M PRO VDH WIFI Motherboard Part of the motherboards heatsink design, M.2 SHIELD FROZR is that the next generation M.2 thermal solution to avoid this by offering the simplest thermal protection to form sure that SSD maintains maximum performance. MSI B560M PRO VDH WIFI Motherboard Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a correct value by adopting MSI AI ENGINE. Total Fan Control allows you to check your primary system characteristics during a simplified graphical interface.MSI B560M PRO VDH WIFI Motherboard Designed to support the foremost popular All-In-One & customized water cooling solutions on the market. a fanatical pump PIN header supports up to 2 amp, supplying you with full control of the pump speed.MSI OC LAB doesn't merely exert extreme overclocking. Compare to the B460 motherboard memory XMP profile, MSI B560M PRO VDH WIFI Motherboard does have great improvement in performance and efficiency for B560. Easy to enable XMP profile with auto power settings to urge the simplest memory speed and stability.

MSI B560M PRO-VDH WIFI Intel 10th/ 11th Gen DDR4 Micro ATX Motherboard

The MSI B560M PRO-VDH WIFI MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the newest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO Series motherboards feature plenty of possibilities for prosumers’ needs. Stable LAN, faster storage and USB transfer speed, and other expandable connectors are able to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive thanks to controlling additional RGB strips and other RGB peripherals added to a system, without having a separate RGB controller. MSI B560M PRO VDH WIFI Motherboard Part of the motherboards heatsink design, M.2 SHIELD FROZR is that the next generation M.2 thermal solution to avoid this by offering the simplest thermal protection to form sure that SSD maintains maximum performance. MSI B560M PRO VDH WIFI Motherboard Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a correct value by adopting MSI AI ENGINE. Total Fan Control allows you to check your primary system characteristics during a simplified graphical interface.MSI B560M PRO VDH WIFI Motherboard Designed to support the foremost popular All-In-One & customized water cooling solutions on the market. a fanatical pump PIN header supports up to 2 amp, supplying you with full control of the pump speed.MSI OC LAB doesn't merely exert extreme overclocking. Compare to the B460 motherboard memory XMP profile, MSI B560M PRO VDH WIFI Motherboard does have great improvement in performance and efficiency for B560. Easy to enable XMP profile with auto power settings to urge the simplest memory speed and stability.
