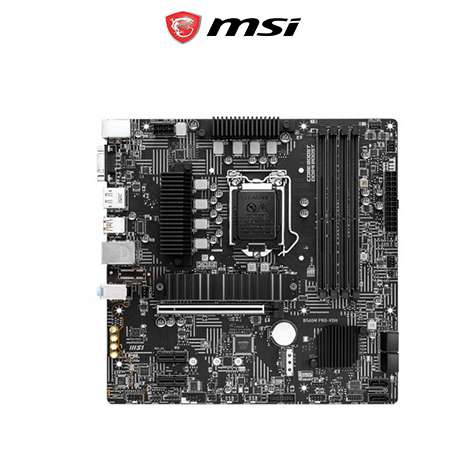

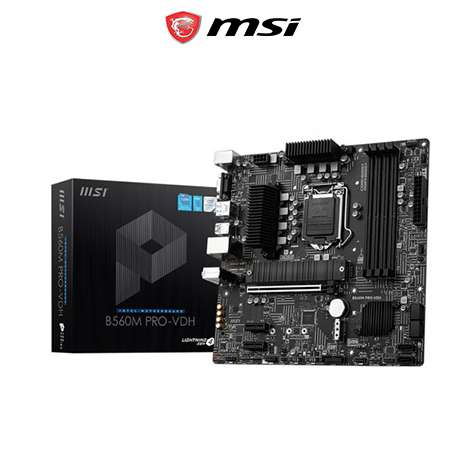

MSI B560M PRO-VDH 10th/ 11th DDR4 Gen Micro ATX Motherboard

Offer Price: BDT 13,400.00

Regular Price: BDT 14,500.00

Out of stock
Product Code: 1765

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: MSI
  • Model: B560M PRO-VDH
  • Chipset: Intel B560 chipset
  • Memory Channel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • MSI B560M PRO-VDH 10th/ 11th DDR4 Gen Micro ATX Motherboard best price in BD,MSI B560M PRO-VDH 10th/ 11th DDR4 Gen Micro ATX Motherboard latest price in 2022

Basic Info

Brand Name

MSI

Model No.

B560M PRO-VDH

CPU Details

Chipset Brand

Intel

Chipset Model

Intel B560 chipset

CPU  Supported

Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1200

Generation

10th/ 11th  Generation

Memory

Memory Type

DDR4

Memory MHz

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

Channel

Dual

Slot

4x DDR4 memory slots

Max. Memory

128GB

Storage

Storage Interface

6x SATA 6Gb/s ports (From B560 chipset)

2x M.2 slot (Key M)
M2_1 slot Supports up to PCIe

4.0 x4 for 11th Gen Intel® CPU (From CPU)
Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
 Supports 2242/ 2260/ 2280/ 22110 storage devices
 M2_2 slot2 (from B560 chipset)
 Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices

Graphics Info

PCI Express Slot

1x PCIe x16 slot (From CPU)
PCI_E1 (From CPU)
Support up to PCIe 4.0 for 11th Gen Intel CPU
Support up to PCIe 3.0 for 10th Gen Intel CPU
2x PCIe 3.0 x1 slots (From B560 chipset)

Type

Integrated

Audio Chipset.

Realtek AL897 Codec

Ports & Connectivity

USB Port


2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
2x USB 2.0 Type-A ports on the back panel
USB Hubs GL850G
4x USB 2.0 ports are available through the internal USB 2.0 connectors

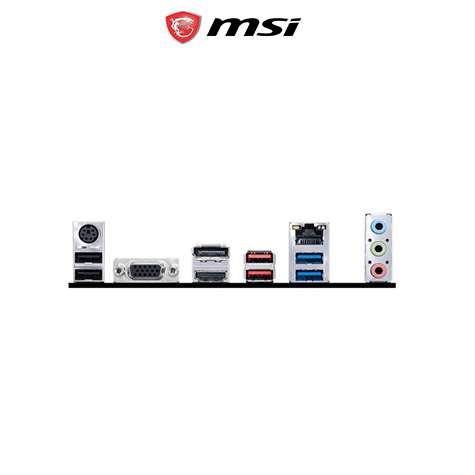

Back Ports

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector

Technical Info
BIOS 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language

Form Factor

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

MSI B560M PRO-VDH 10th/ 11th DDR4 Gen Micro ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The latest MSI B560M PRO-VDH Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz. This motherboard featured Core Boost With a premium layout and digital power design to support more cores and provide better performance. Here used Advanced technology to deliver pure data signals for the best performance and stability. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr that provides you Lightning Fast Experience. By 2.5G LAN, you can Upgrade network solution for professional and multimedia use that delivers a secure, stable and fast network connection. Here, Audio Boost rewards your ears with studio-grade sound quality.

MSI B560M PRO-VDH 10th/ 11th DDR4 Gen Micro ATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The latest MSI B560M PRO-VDH Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz. This motherboard featured Core Boost With a premium layout and digital power design to support more cores and provide better performance. Here used Advanced technology to deliver pure data signals for the best performance and stability. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr that provides you Lightning Fast Experience. By 2.5G LAN, you can Upgrade network solution for professional and multimedia use that delivers a secure, stable and fast network connection. Here, Audio Boost rewards your ears with studio-grade sound quality.
