Basic Info

Brand Name

MSI

Model No.

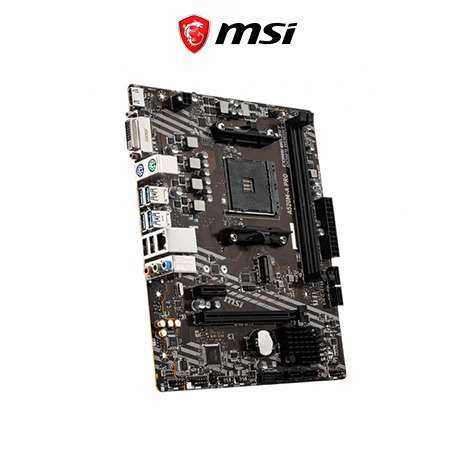

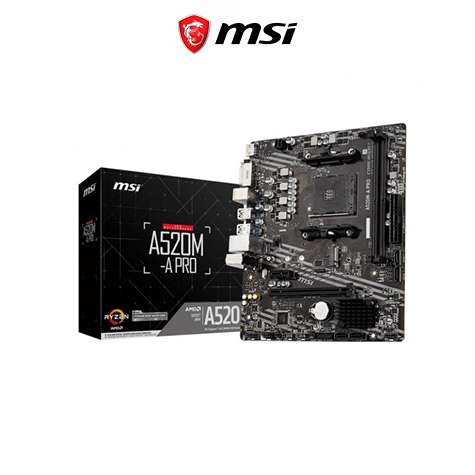

MSI A520M-A Pro

CPU Details

Chipset Brand

AMD

Chipset Model

AMD B520

CPU  Supported

AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors

Generation

3^rd/4^th/5^th Generation

Memory

Memory Type

DDR4

Memory MHz

1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz

Channel

Dual

Slot

2 x DDR4

Max. Memory

64GB

Storage

Storage Interface

AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

Graphics Info

PCI Express Slot

1x PCIe 3.0 x1 slot
1x PCIe x16 slot

M.2 Socket:

1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices

Type

Integrated

Audio Chipset.

Realtek ALC892 Codec
7.1-Channel High Definition Audio

Ports & Connectivity

USB Port

AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Back Ports

1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper

Bios & Technical Info

BIOS Type

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS

Form Factor

Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
