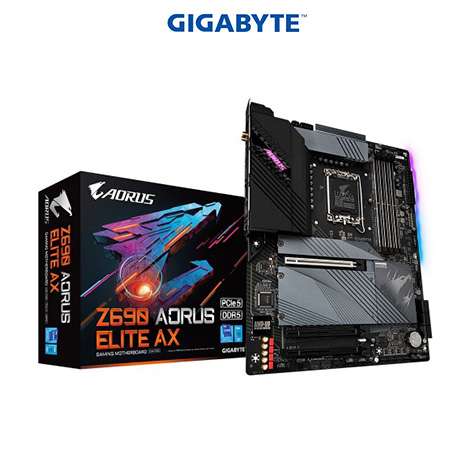

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi Dual ATX Motherboard

Offer Price: BDT 28,000.00

Regular Price: BDT 35,750.00

Out of stock
Product Code: 1707

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Gigabyte
  • Model : Z690 AORUS ELITE AX
  • Chipset: Intel Z690 Express Chipset
  • Memory Chanel: Dual
  • Warranty: 3 years





View More Info
  • Pc Builder, PC-Components
  • Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard price in Bd,Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi ATX Motherboard best price in Bangladesh

Basic Info

Brand Name

Gigabyte

Model No.

Z690 AORUS ELITE AX

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z690 Express Chipset

CPU  Supported

LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Generation

12th Generation

Memory

Memory Type

DDR5

Memory MHz

Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz

Channel

Dual

Slot

4 x DIMM

Max. Memory

128GB

Storage

Storage Interface

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Graphics Info

PCI Express Slot

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)

Type

Integrated

Audio Chipset.

Realtek ALC1220-VB codec

Ports & Connectivity

USB Port

Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Back Ports

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button

Bios & Technical Info

BIOS Type

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi Dual ATX Motherboard

 This Gigabyte motherboard designed with Gigabyte 16 (8+8 phases parallel power design) +1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor. The Gigabyte Z690 AORUS ELITE AX featured with DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, AMP-UP Audio with ALC1220 and WIMA Audio Capacitors, Fast 2.5GbE LAN with Bandwidth Management and 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards. GIGABYTE still keep up with the latest trends and features with the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.​ The Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. The Motherboard has SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. The latest Gigabyte Z690 AORUS ELITE AX comes with 03 years warranty.

Gigabyte Z690 AORUS ELITE AX 12th Gen WiFi Dual ATX Motherboard

 This Gigabyte motherboard designed with Gigabyte 16 (8+8 phases parallel power design) +1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor. The Gigabyte Z690 AORUS ELITE AX featured with DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, AMP-UP Audio with ALC1220 and WIMA Audio Capacitors, Fast 2.5GbE LAN with Bandwidth Management and 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards. GIGABYTE still keep up with the latest trends and features with the latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.​ The Z690 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. The Motherboard has SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. The latest Gigabyte Z690 AORUS ELITE AX comes with 03 years warranty.
