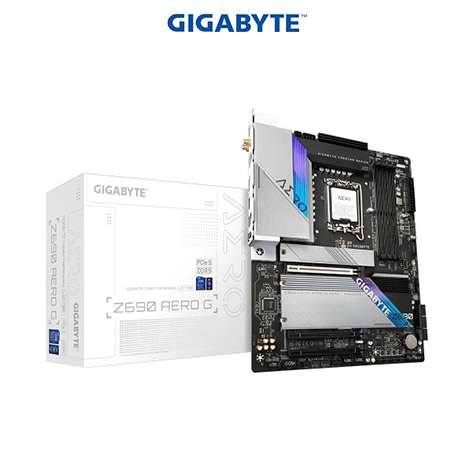

Gigabyte Z690 Aero G DDR5 12th DDR4 Gen ATX Motherboard

Offer Price: BDT 33,800.00

Regular Price: BDT 36,850.00

Out of stock
Product Code: 1691

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Gigabyte
  • Model : Z690 Aero G DDR5
  • Chipset: Intel Z690 Express Chipset
  • Memory Chanel: Dual
  • Warranty: 3 years





View More Info
  • Pc Builder, PC-Components
  • Gigabyte Z690 Aero G DDR5 12th Gen ATX Motherboard price in Bd,Gigabyte Z690 Aero G DDR5 12th Gen ATX Motherboard best price in Bangladesh

Basic Info

Brand Name

Gigabyte

Model No.

Z690 Aero G DDR5

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z690 Express Chipset

CPU  Supported

LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Generation

12th Generation

Memory

Memory Type

DDR5

Memory MHz

LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Channel

Dual

Slot

4x DDR DIMM

Max. Memory

128GB

Storage

Storage Interface

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.

Graphics Info

PCI Express Slot

1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)

Type

Integrated

Audio Chipset.

1 x front panel audio header

Ports & Connectivity

USB Port

Chipset:
2 x USB Type-C ports, with USB 3.2 Gen 2x2 support
(1 port on the back panel, 1 port available through the internal USB header)
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers

Back Ports

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

Bios & Technical Info

BIOS Type

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

Gigabyte Z690 Aero G DDR5 12th DDR4 Gen ATX Motherboard

Gigabyte Z690 Aero G DDR5 motherboards is a fresh approach to creators that evolve with optimized features for content creation. This motherboard deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production. The Gigabyte Z690 Aero G DDR5 motherboard Supports with 12th Gen Intel Core Series Processors​, Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs, PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage, Go further without more cables by VisionLINK I/O design, Brings a speed network experience with Intel 2.5GbE LAN and WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal. The Intel 2.5 GbE network connectivity supports speeds up to 2.5 times faster than Gigabit Ethernet. It gives an immediate boost to overall network performance and data transfer speeds. The GIGABYTE VisionLINK is an extension of your idea and creation. You can Transmitting data, video output, and power charging all through one USB Type-C cable will simplify the user experience than ever. With seamless multitasking between your PC and devices. It helps the boosts system performance and offers you a smooth experience. Whether you are editing hundreds of audio samples, handling 4K footage, or multitasking workloads, it helps to boosts system performance and offers you a smooth experience. This new model comes with four PCIe 4.0 M.2 sockets and it is capable to deliver superior bandwidth. Upgrade your storage configuration now to accelerate your workflow. PCIe 4.0 M.2 SSD gives you 7X faster data transferring speeds compared to 2.5” SATA solid-state drives. A large heat sink design and Direct-Touch Heatpipe II ensure stability during creative sessions. The latest Gigabyte Z690 Aero G DDR5 motherboard offers 03 years warranty.

Gigabyte Z690 Aero G DDR5 12th DDR4 Gen ATX Motherboard

Gigabyte Z690 Aero G DDR5 motherboards is a fresh approach to creators that evolve with optimized features for content creation. This motherboard deliver reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production. The Gigabyte Z690 Aero G DDR5 motherboard Supports with 12th Gen Intel Core Series Processors​, Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs, PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage, Go further without more cables by VisionLINK I/O design, Brings a speed network experience with Intel 2.5GbE LAN and WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal. The Intel 2.5 GbE network connectivity supports speeds up to 2.5 times faster than Gigabit Ethernet. It gives an immediate boost to overall network performance and data transfer speeds. The GIGABYTE VisionLINK is an extension of your idea and creation. You can Transmitting data, video output, and power charging all through one USB Type-C cable will simplify the user experience than ever. With seamless multitasking between your PC and devices. It helps the boosts system performance and offers you a smooth experience. Whether you are editing hundreds of audio samples, handling 4K footage, or multitasking workloads, it helps to boosts system performance and offers you a smooth experience. This new model comes with four PCIe 4.0 M.2 sockets and it is capable to deliver superior bandwidth. Upgrade your storage configuration now to accelerate your workflow. PCIe 4.0 M.2 SSD gives you 7X faster data transferring speeds compared to 2.5” SATA solid-state drives. A large heat sink design and Direct-Touch Heatpipe II ensure stability during creative sessions. The latest Gigabyte Z690 Aero G DDR5 motherboard offers 03 years warranty.
