Basic Info

Brand Name

Gigabyte

Model No.

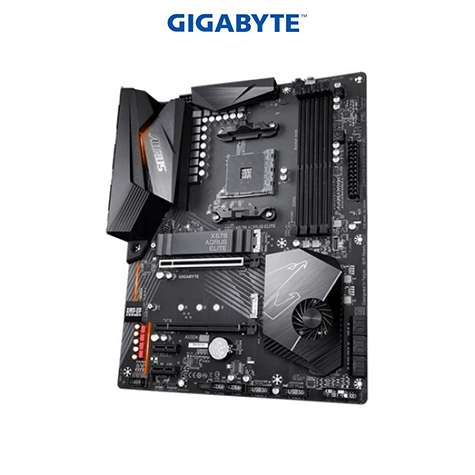

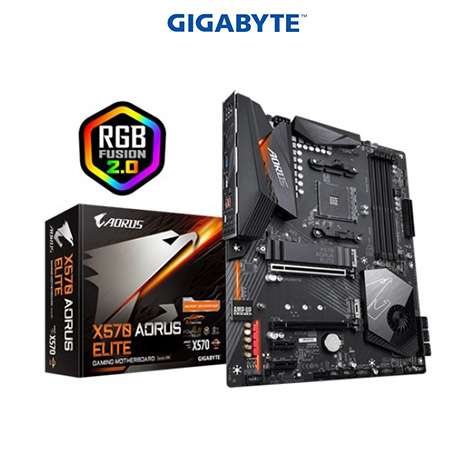

Gigabyte X570 Aorus Elite

CPU Details

Chipset Brand

AMD

Chipset Model

AMD X570

CPU  Supported

 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors

Generation

2^nd/3^rdGeneration

Memory

Memory Type

DDR4

Memory MHz

3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors

Channel

Dual

Slot

4x DDR4

Max. Memory

128GB

Storage

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)  6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

Graphics Info

PCI Express Slot

Integrated in the CPU (PCIEX16):
3rd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
2nd Generation AMD Ryzen processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
Integrated in the Chipset (PCIEX4/PCIEX1):
1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)
For 3rd Generation AMD Ryzen processors only.
2 x PCI Express x1 slots, supporting PCIe 4.0/3.0
For 3rd Generation AMD Ryzen processors only.

Type

Integrated

Audio Chipset.

5 x audio jacks
Realtek ALC1200 codec

Ports & Connectivity

USB Port

Integrated in the CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Back Ports

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Bios & Technical Info

BIOS Type

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
