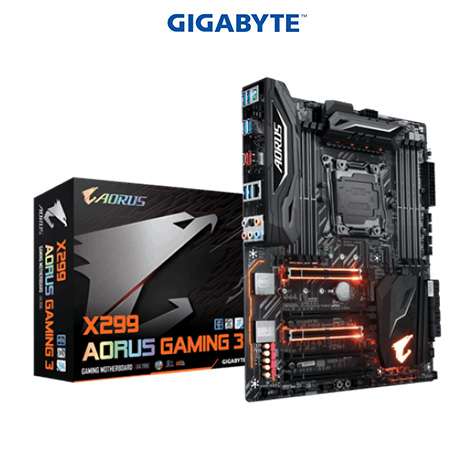

Gigabyte X299 AORUS DDR4 Gaming 3 Motherboard

Basic Info

Brand Name

Gigabyte

Model No.

X299 AORUS Gaming 3

CPU Details

Chipset Brand

Intel

Chipset Model

Intel® X299 Express Chipset

CPU  Supported

Support for Intel® Core™ X series processors in the LGA2066 package
L3 cache varies with CPU

Generation

10^th Generation

Memory

Memory Type

DDR4

Memory MHz

Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz

Channel

Quad

Slot

8 x DIMM

Max. Memory

128GB

Storage

Storage Interface

Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Graphics Info

PCI Express Slot

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Type

Integrated

Audio Chipset.

Realtek® ALC1220 codec High Definition Audio

Ports & Connectivity

USB Port

Chipset+ASMedia® USB 3.1 Gen 2 Controller:

1.    1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

2.    1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

Chipset:

1.    10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

2.    4 x USB 2.0/1.1 ports available through the internal USB headers

Back Ports

1.    1 x 24-pin ATX main power connector

2.    1 x 8-pin ATX 12V power connector

3.    1 x CPU fan header

4.    1 x water cooling CPU fan header

5.    4 x system fan headers

6.    1 x system fan/water cooling pump header

7.    1 x 3 Amp fan/water cooling pump header

8.    1 x digital LED strip extension cable header

9.    2 x RGB (RGBW) LED strip extension cable headers

10.  2 x M.2 Socket 3 connectors

11.  8 x SATA 6Gb/s connectors

12.  1 x Intel® VROC Upgrade Key header

13.  1 x front panel header

14.  1 x front panel audio header

15.  1 x S/PDIF Out header

16.  2 x USB 3.1 Gen 1 headers

17.  2 x USB 2.0/1.1 headers

18.  1 x Thunderbolt™ add-in card connector

19.  1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

20.  1 x power button

21.  1 x OC button

22.  2 x temperature sensor headers

23.  1 x Clear CMOS jumper

Bios & Technical Info

BIOS Type

2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
