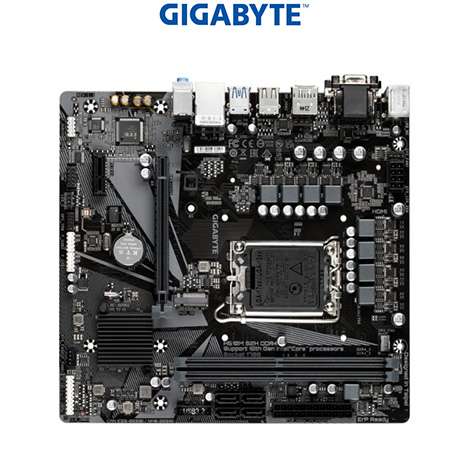

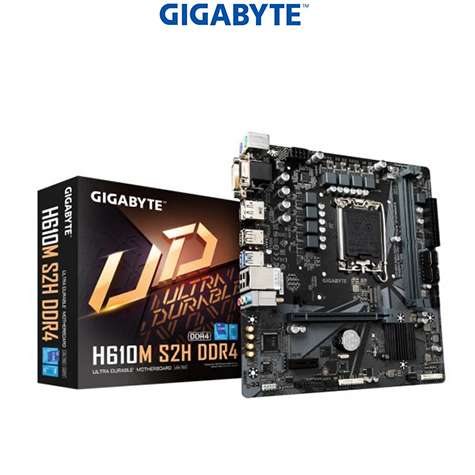

Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard

Offer Price: BDT 11,200.00

Regular Price: BDT 14,330.00

In stock
Product Code: 1747

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Gigabyte
  • Model: H610M S2H DDR4
  • Chipset: Intel H610 Express Chipset
  • Memory Channel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • Gigabyte H610M S2H 12th Gen Micro ATX Motherboard latest price in 2022 BD,Gigabyte H610M S2H 12th Gen Micro ATX Motherboard best price in BD



Basic Info

Brand Name

Gigabyte

Model No.

H610M S2H DDR4

CPU Details

Chipset Brand

Intel

Chipset Model

Intel H610 Express Chipset

CPU  Supported

LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Generation

12th Generation

Memory

Memory Type

DDR4

Memory MHz

DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz

Channel

Dual

Slot

4 x DDR DIMM sockets

Max. Memory

128GB

Storage

Storage Interface

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10

Graphics Info

PCI Express Slot

1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2 x PCI Express x1 slots
(The PCIEX1 slots conform to PCI Express 3.0 standard.)

Type

Integrated

Audio Chipset.

Realtek Audio CODEC

Ports & Connectivity

USB Port

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers

Bios & Technical Info

BIOS Type

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

Gigabyte H610M S2H 12th Gen Micro ATX Motherboard

Supports 12th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 6+1+1 Hybrid Digital VRM Design GIGABYTE Gaming LAN with Bandwidth Management NVMe PCIe 3.0 x4 M.2 HDMI / DVI-D / D-Sub Ports for Multiple Display High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

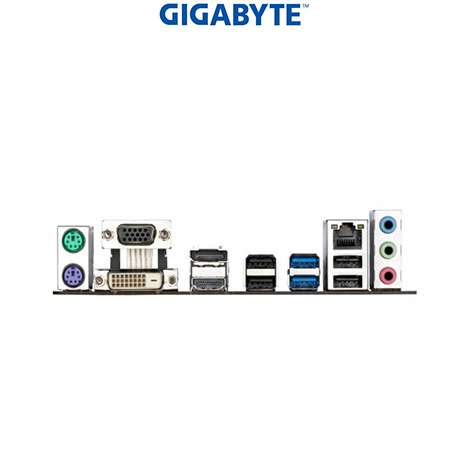

* Photos are for reference only. Product features may vary by model.Back Ports1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Gigabyte H610M S2H 12th Gen Micro ATX Motherboard

Supports 12th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 6+1+1 Hybrid Digital VRM Design GIGABYTE Gaming LAN with Bandwidth Management NVMe PCIe 3.0 x4 M.2 HDMI / DVI-D / D-Sub Ports for Multiple Display High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.Back Ports1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
