Basic Info

Brand Name

Gigabyte

Model No.

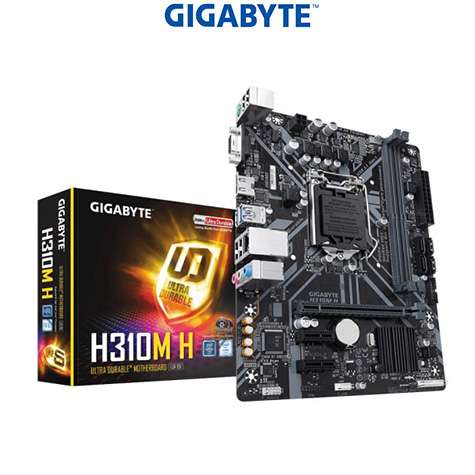

H310M H

CPU Details

Chipset Brand

Intel

Chipset Model

Intel® H310 Express Chipset

CPU  Supported

Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Generation

8^th Generation

Memory

Memory Type

DDR4

Memory MHz

2666/ 2400/ 2133MHz

Channel

Dual

Slot

2 x DIMM

Max. Memory

32GB

Storage

Storage Interface

4 x SATA 6Gb/s connectors

Graphics Info

PCI Express Slot

1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Type

Integrated

Audio Chipset.

Realtek® ALC887 codec

Ports & Connectivity

USB Port

4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Back Ports

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

Bios & Technical Info

BIOS Type

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 22.6cm x 17.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
