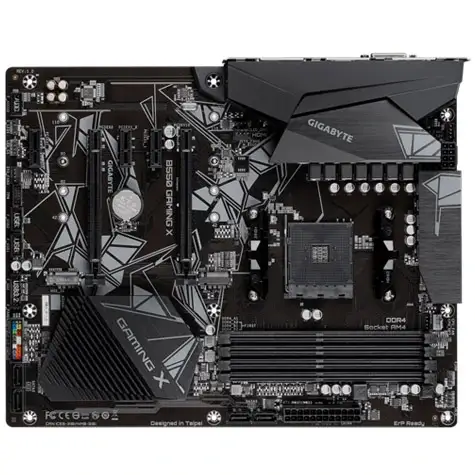

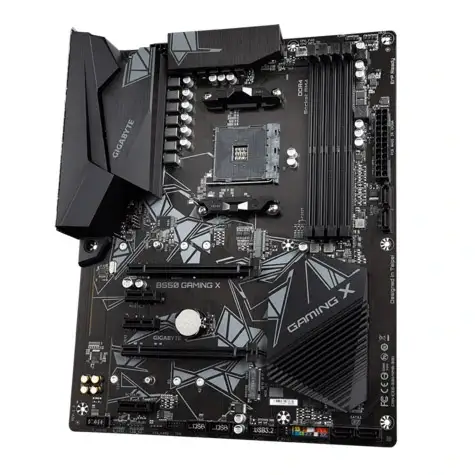

GIGABYTE B550 GAMING X AM4 ATX RGB FUSION AMD Ryzen Motherboard
Offer Price:
BDT 22,000.00
Regular Price: BDT 23,900.00
In stock
Product Code: 3564
* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300
- Model: B550 GAMING X
- Processors: AMD Ryzen 5000 Series/3rd Gen with Radeon Graphics
- Ram: 4 x DIMM slots DDR4
- Form Factor: ATX Form Factor; 30.5cm x 24.4cm
- VRM: 10+3 Phases Pure Digital
- Slots: Ultra-Fast NVMe PCIe Slots
- Ports: HDMI, DVI-D Ports
View More Info
- Pc Builder, PC-Components
-
GIGABYTE B550M GAMING X,GIGABYTE B550M GAMING X motherboard
|
Basic Info |
|
|
Brand Name |
Gigabyte |
|
Model No: |
B550 |
|
CPU/Processor |
|
|
CPU Support |
AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
|
Chipset |
AMD B550 |
|
Memory Details |
|
|
Memory Type |
DDR4 |
|
Memory Support (MHz) |
AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: |
|
Memory Channel |
Dual |
|
Memory Slot Count |
4 x DIMM slots |
|
Maximum Supported Memory |
Up to 128GB (32 GB single DIMM capacity) |
|
Storage Details |
|
|
Storage Connection |
4 x SATA 6Gb/s connectors |
|
Storage Support |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: |
|
SSD SLOT/M.2 |
2 |
|
Graphics |
|
|
Graphics Type |
Integrated |
|
PCI Express |
Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: |
|
Graphics Resolution |
1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
|
Lan & Connectivity |
|
|
LAN Chipset |
Realtek GbE LAN chip (1000 Mbit/ 100 Mbit) |
|
LAN Speed |
(1000 Mbit/ 100 Mbit) |
|
Ports/Connectors |
|
|
USB Port |
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
DVI Port |
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
|
SATA Port |
6 x SATA 6Gb/s connectors |
|
TPM Port |
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
|
HDMI Port |
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz |
|
RGB Connector |
2 x RGB LED strip headers |
|
Internal Port |
1 x 24-pin ATX main power connector |
|
Technical Support |
|
|
RGB Sync |
RGB FUSION |
|
Bios Details |
|
|
BIOS Type |
1 x 256 Mbit flash |
|
BIOS Model |
Use of licensed AMI UEFI BIOS |
|
BIOS Version |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Supported Windows |
|
|
OS Support |
Windows 10/11 |
|
Others |
|
|
Other |
Support for APP Center |
|
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
|
Audio Chipset and Channel |
Realtek ALC887 codec |
|
Warranty |
3 Years |
Description
GIGABYTE B550M GAMING X AM4 ATX RGB FUSION AMD Ryzen Motherboard
AMD B550 Gaming Motherboard with Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 4.0/3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra Durable™ PCIe 4.0 Ready x16 Slot
- Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Slots
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D Ports for Multiple Display
- Features High-Quality Audio Capacitors
- RGB FUSION 2.0 support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card
- Anti-Sulfur Resistors Design
GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC into a performance-driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors
PERFORMANCE
10+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
B550 motherboard uses a 10+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
PCIe 4.0* Hardware Design
PCIe 4.0 Slot
Reinforces PCIe 4.0 x16 bandwidth with lower impedance.
* Actual support may vary by CPU
M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with Lower impedance.
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
CONNECTIVITY
Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting RAID modes.
Actual support may vary by CPU.
Exclusive Realtek 8118 Gaming LAN
high-Speedigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with e most comprehensive features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority
Real-Time Network Monitoring
HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, is backward compatible with HDMI 2.0/ 1.4 and offers 48 Gb/s of bandwidth – twice more than the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR a, and HDCP 2.3 support, to offer the best visual experience for viewers.
Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.
COOLING
Advanced Thermal Design
Smart Fan 5
With Smart Fan 5, users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5, more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Fan / Water Pump Connectors
Internal Temperature Sensors
Different models have dia different numbers of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Temperature Sensors
Hybrid Fan Headers
■ 6 Temperature Sensors
■ 5 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
FAN STOP
Hybrid FAN Header
Smart Fan 5 Software
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
LIGHTING
RGB FUSION 2.0
With B550M Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature-filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable t, users experience even more patterns, styles, and illuminations.
Wi50 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* The external RGB LED strips and Addressable LED strips are not included with the motherboard purchase.
RGB Fusion 2.0 Software
RGB Fusion APP
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you with a better solution for customizing the lighting effects across all supported devices. From motherboards and grand graphics cards to peripheral products, you can personalize your gaming rig with your own and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish
AUDIO
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver hihighresolutiond high-fidelity audio to provide gamers with the most realistic sound effects
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory, and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory, nd graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
GIGABYTE Patented Double Locking Bracket
Solid Pin Power Connectors
B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical chchangesnd causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
GIGABYTE EXCELLENCE
GIGABYTE BIOS & Applications
BIOS
APP CENTER
EasyTune
@BIOS
System Information Viewer
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier-to-use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
The GIGABYTE B550M GAMING X AM4 ATX RGB FUSION AMD Ryzen Motherboard Come With 03 Years Warranty.
