Basic Info

Brand Name

Gigabyte

Model No.

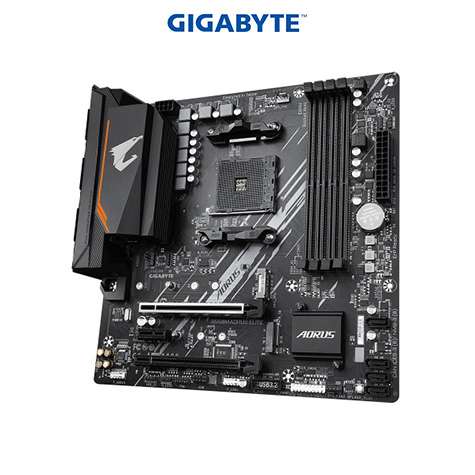

B550M Aorus Elite

CPU Details

Chipset Brand

AMD

Chipset Model

AMD B550

CPU  Supported

AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors

Generation

3^rd/4^th/5^th Generation

Memory

Memory Type

DDR4

Memory MHz

3rd Gen AMD Ryzen Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
New Generation AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz

Channel

Dual

Slot

4x DDR4

Max. Memory

128GB

Storage

Storage Interface

1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

Graphics Info

PCI Express Slot

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
- New Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode

Type

Integrated

Audio Chipset.

Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

Ports & Connectivity

USB Port

4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Back Ports

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Bios & Technical Info

BIOS Type

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
