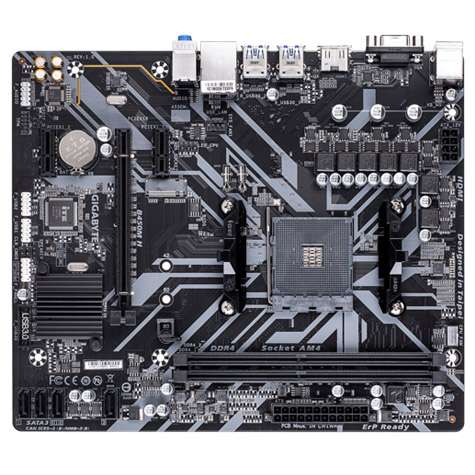

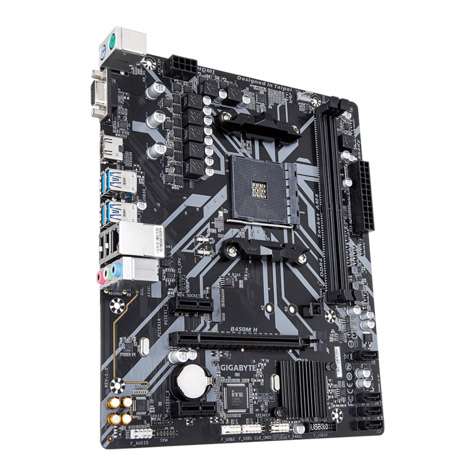

GIGABYTE B450M H MICRO-ATX AMD AM4 DUAL CHANNEL MOTHERBOARD
Regular Price: BDT 9,900.00
* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300
- Model: B450M H
- Processors: Up to AMD Ryzen 5000 series
- FAN: Smart Fan 5 Features
- Form Factor: Micro ATX
- Memory: Dual channel 2 x DDR4 MAX 32GB
- Pc Builder, PC-Components
-
GIGABYTE B450M H Micro-ATX AMD AM4 Dual channel Motherboard,GIGABYTE B450M H
|
Basic Info |
|
|
Brand Name |
Gigabyte |
|
Model No: |
B450M H |
|
CPU/Processor |
|
|
CPU Support |
AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors |
|
Generation |
3rd Generation |
|
CPU Socket Support |
AM4 |
|
Chipset |
AMD B450 |
|
Memory Details |
|
|
Memory Type |
DDR4 |
|
Memory Frequency (MHz) |
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules |
|
Memory Channel |
Dual |
|
Memory Slot Count |
2 x DDR4 DIMM |
|
Maximum Supported Memory |
Up to 32GB |
|
Storage Details |
|
|
Storage Connection |
4 x SATA 6.0 Gb/s |
|
Storage Support |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
|
SSD SLOT/M.2 |
1 |
|
Graphics |
|
|
Graphics Type |
Integrated |
|
PCI Express |
Integrated Graphics Processor: |
|
Graphics Resolution |
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
|
Lan & Connectivity |
|
|
LAN Chipset |
Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
|
LAN Speed |
100/1000Mbps |
|
LAN Type |
Gaming LAN |
|
Ports/Connectors |
|
|
USB Port |
2 x USB 3.1 Gen 1 ports available through the internal USB header |
|
SATA Port |
4 |
|
D-Sub |
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
|
TPM Port |
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
|
HDMI Port |
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
Internal Port |
1 x 24-pin ATX main power connector |
|
Bios Details |
|
|
BIOS Type |
128 Mb flash (1) |
|
BIOS Model |
AMI UEFI BIOS |
|
BIOS Version |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Supported Windows |
|
|
OS Support |
Windows 10 |
|
Others |
|
|
Warranty |
3 Years |
|
Form Factor |
Micro ATX Form Factor: 24.4cm x 20.5cm |
|
Audio Chipset and Channel |
Realtek ALC887 codec |
|
Special Feature |
Support for APP Center |
Description
GIGABYTE B450M H Micro-ATX AMD AM4 Dual channel Motherboard
AMD B450 Ultra Durable Motherboard with Realtek GbE LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design
- Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- HDMI, D-sub Ports for Multiple Display
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- Realtek GbE LAN with Bandwidth Management
- RGB Fusion supports RGB LED Strips in 7-Colors
- High Quality Audio Capacitors and Audio Noise Guard Design
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- APP Center Including EasyTune™ and Cloud Station™ Utilities
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery
Humidity Protection Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
GIGABYTE B450M H Micro-ATX AMD AM4 Dual channel Motherboard
AMD B450 Ultra Durable Motherboard with Realtek GbE LAN and Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor Design
- Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- HDMI, D-sub Ports for Multiple Display
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- Realtek GbE LAN with Bandwidth Management
- RGB Fusion supports RGB LED Strips in 7-Colors
- High Quality Audio Capacitors and Audio Noise Guard Design
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- APP Center Including EasyTune™ and Cloud Station™ Utilities
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery
Humidity Protection Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
