Basic Info

Brand Name

Asus

Model No.

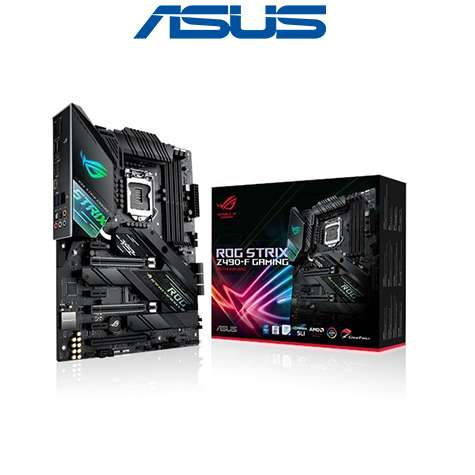

ROG Strix Z490-F Gaming

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z490

CPU  Supported

Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Generation

10^th Generation

Memory

Memory Type

DDR4

Memory MHz

4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz

Channel

Dual

Slot

4 x DDR4 DIMM

Max. Memory

128GB

Storage

Storage Interface

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10

Graphics Info

PCI Express Slot

Intel 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
Intel Z490 Chipset
1 x PCIe 3.0 x16 (max at x4 mode)
3 x PCIe 3.0 x1

Type

Integrated

Audio Chipset.

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback

Ports & Connectivity

USB Port

Rear USB Port ( Total 8 )
4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)
Front USB Port ( Total 7 )
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)

Back Ports

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
2 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

Bios & Technical Info

BIOS Type

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
