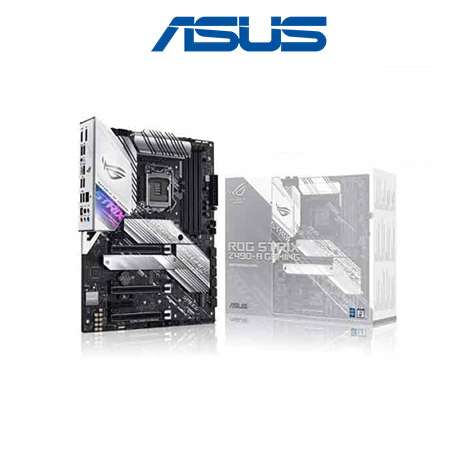

Asus ROG Strix Z490-A Gaming Intel DDR4 10th Gen ATX Motherboard

Offer Price: BDT 25,000.00

Regular Price: BDT 27,500.00

Out of stock
Product Code: 1688

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model : Asus ROG Strix Z490-A Gaming
  • Chipset: Intel Z490
  • Memory Chanel: Dual
  • Warranty: 3 years





View More Info
  • Pc Builder, PC-Components
  • Asus ROG Strix Z490-A Gaming Intel 10th Gen ATX Motherboard price in Bd,Asus ROG Strix Z490-A Gaming Intel 10th Gen ATX Motherboard best price in Bangladesh

Basic Info

Brand Name

Asus

Model No.

Asus ROG Strix Z490-A Gaming

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z490

CPU  Supported

Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Generation

10th Generation

Memory

Memory Type

DDR4

Memory MHz

4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz

Channel

Dual

Slot

4 x DIMM

Max. Memory

128GB

Storage

Storage Interface

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready

Graphics Info

PCI Express Slot

Intel 10th Gen Processors
3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
Intel Z490 Chipset
1 x PCIe 3.0 x4 (max at x2 mode)
1 x PCIe 3.0 x1

M.2 Socket:

 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Type

Integrated

Audio Chipset.

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Ports & Connectivity

USB Port

Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A + USB Type-C)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)
Front USB Port ( Total 7 )
1 x USB3.2 Gen 1 front panel connector port(s)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

Back Ports

1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 with E key for Wi-Fi module
6 x SATA 6Gb/s connector(s)

Bios & Technical Info

BIOS Type

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

Asus ROG Strix Z490-A Gaming Intel DDR4 10th Gen ATX Motherboard

 ROG Strix Z490-A Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls let you manage to overclock, cooling, and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance. ROG Strix Z490-A Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly-fast file transfers. The superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience. ROG Strix Z490-A Gaming supports up to 128GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk to enhance memory stability and compatibility, giving memory kits higher frequency margins. Two M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available. The cyberpunk-inspired aesthetics are accentuated by the bold slashes and cybertext. Together with the most diverse ROG ecosystem, Pair your ROG Strix Z490-A Gaming with other ROG products to customize a gaming rig that reflects your personal style. Strix Z490-A Gaming embodies the Strix spirit, with its white and silver color scheme and cyberpunk-inspired markings across its stainless steel I/O shroud. It's perfect for builds with stand-out aesthetics. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go. The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking settings. We have upgraded this tool to provide AI Overclocking prediction values for users who want more insight when experimenting with different settings. The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

Asus ROG Strix Z490-A Gaming Intel DDR4 10th Gen ATX Motherboard

 ROG Strix Z490-A Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls let you manage to overclock, cooling, and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance. ROG Strix Z490-A Gaming provides you with the latest connectivity for supersmooth online experiences and blisteringly-fast file transfers. The superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience. ROG Strix Z490-A Gaming supports up to 128GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk to enhance memory stability and compatibility, giving memory kits higher frequency margins. Two M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available. The cyberpunk-inspired aesthetics are accentuated by the bold slashes and cybertext. Together with the most diverse ROG ecosystem, Pair your ROG Strix Z490-A Gaming with other ROG products to customize a gaming rig that reflects your personal style. Strix Z490-A Gaming embodies the Strix spirit, with its white and silver color scheme and cyberpunk-inspired markings across its stainless steel I/O shroud. It's perfect for builds with stand-out aesthetics. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking but goes further by running a Prime95 based stress test to deliver a result that's well-tuned from the get-go. The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking settings. We have upgraded this tool to provide AI Overclocking prediction values for users who want more insight when experimenting with different settings. The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
