Basic Info

Brand Name

Asus

Model No.

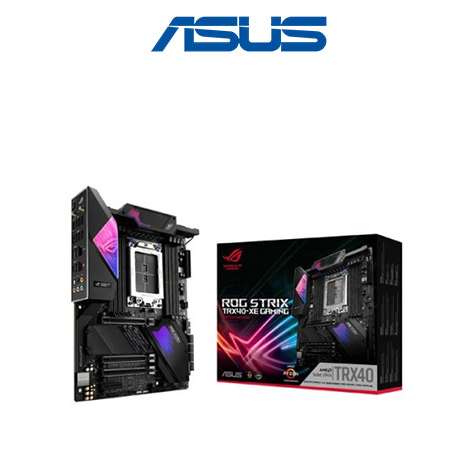

 Asus ROG Strix TRX40-XE

CPU Details

Chipset Brand

AMD

Chipset Model

AMD TRX40

CPU  Supported

Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors
Supports CPU up to 64 cores

Generation

3^rd Generation

Memory

Memory Type

DDR4

Memory MHz

4666(O.C.)/4600(O.C)/4400(O.C)/ 4333(O.C.)/4266(O.C.)/ 4133(O.C.)/ 3800(O.C.)/ 3733(O.C.)/3466(O.C.)/3400(O.C.)/ 3200/2800/2666/2400/2133 MHz

Channel

Dual

Slot

8 x DIMM

Max. Memory

256GB

Storage

Storage Interface

3rd Gen AMD Ryzen Threadripper Series Desktop processors :
2 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(PCIe 4.0 x4 mode)
AMD TRX40 chipset :
1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

Graphics Info

PCI Express Slot

3rd Gen AMD RyzenThreadripper Series Desktop processors
3 x PCIe 4.0 x16 (x16/x16/x16)
1 x PCIe 4.0 x4 1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
2 x PCIe 4.0 x1

Type

Integrated

Audio Chipset.

- SupremeFX Shielding Technology
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS® Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III

Ports & Connectivity

USB Port

3rd Gen AMD Ryzen Threadripper Processors :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)
AMD TRX40 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C)
8 x USB 2.0 port(s)
ASMedia USB 3.2 Gen 1 controller :
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)

Back Ports

2 x Aura RGB Strip Header
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)

Bios & Technical Info

BIOS Type

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
