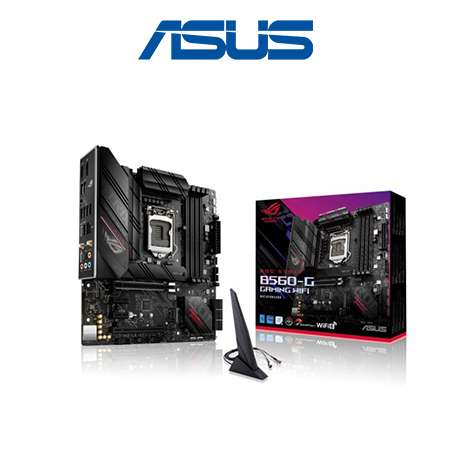

ASUS ROG STRIX B560-G GAMING WI-FI 10th/ 11th Gen DDR4 Micro ATX Motherboard

Offer Price: BDT 19,800.00

Regular Price: BDT 21,050.00

Out of stock
Product Code: 1614

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model Name: ROG STRIX B560-G GAMING WI-FI
  • Chipset: Intel B560 Chipset
  • Memory Chanel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • ASUS ROG STRIX B560-G GAMING WI-FI 10th and 11th Gen Micro ATX Motherboard best price in Bangladesh,ASUS ROG STRIX B560-G GAMING WI-FI 10th and 11th Gen Micro ATX Motherboard price in Bangladesh

Basic Info

Brand Name

Asus

Model No.

ROG STRIX B560-G GAMING WI-FI

CPU Details

Chipset Brand

Intel

Chipset Model

Intel B560 Chipset

CPU  Supported

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Generation

10th/ 11th Generation

Memory

Memory Type

DDR4

Memory MHz

5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Channel

Dual

Slot

4 x DDR4

Max. Memory

128GB

Storage

Storage Interface

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports

Graphics Info

PCI Express Slot

Intel 11th &10th Gen Processors:
1 x PCIe 4.0/3.0 x16 slot(s)
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel10th Gen processors support PCIe 3.0 x16
Intel B560 Chipset:
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Type

Integrated

Audio Chipset.

5 x Audio jacks

Ports & Connectivity

USB Port

Rear USB:
Total 9 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
1 x USB 3.2 Gen 2 port(s)
(1 x Type-A)
7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C)
Front USB:
Total 7 ports
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Back Ports

1 x TB Header (for add-on TB card)
1 x Thunderbolt header
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C)
1 x HDMI port
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button
Connectors

Bios & Technical Info

BIOS Type

128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

microATX
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

ASUS ROG STRIX B560-G GAMING WI-FI 10th/ 11th Gen  DDR4 Micro ATX Motherboard

As a finishing touch, futuristic aesthetics accented by customizable RGB lighting allow you to make the build uniquely yours. It supports Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. It comes with a Solid Power Solution. Teamed power stages with ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors. Smooth Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard. It features Best Gaming Connectivity. It supports HDMI 2.0 and DisplayPort 1.4 output, two M.2 slots, and USB 3.2 Gen 2x2 USB Type-C. It has a  DIY Friendly Design. M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack, and Q-LED. ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers. It is equipped with Industry-Leading Gaming Audio. SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound, and Sonic Studio III. It has 3 years of warranty.

ASUS ROG STRIX B560-G GAMING WI-FI 10th/ 11th Gen  DDR4 Micro ATX Motherboard

As a finishing touch, futuristic aesthetics accented by customizable RGB lighting allow you to make the build uniquely yours. It supports Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. It comes with a Solid Power Solution. Teamed power stages with ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors. Smooth Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard. It features Best Gaming Connectivity. It supports HDMI 2.0 and DisplayPort 1.4 output, two M.2 slots, and USB 3.2 Gen 2x2 USB Type-C. It has a  DIY Friendly Design. M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack, and Q-LED. ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers. It is equipped with Industry-Leading Gaming Audio. SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound, and Sonic Studio III. It has 3 years of warranty.
