Basic Info

Brand Name

Asus

Model No.

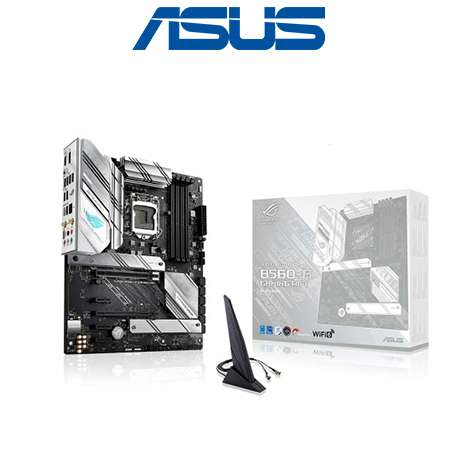

ROG STRIX B560-A GAMING WIFI

CPU Details

Chipset Brand

Intel

Chipset Model

B560

CPU  Supported

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Generation

10^th /11^th Generation

Memory

Memory Type

DDR4

Memory MHz

 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

Channel

Dual

Slot

4 x DDR4 DIMM

Max. Memory

128GB

Storage

Storage Interface

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports

Graphics Info

PCI Express Slot

Intel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)
- Intel 11th processors support PCIe 4.0 x16 mode
- Intel10th processors support PCIe 3.0 x16 mode

Intel B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
3 x PCIe 3.0 x1 slots

Type

Integrated

Audio Chipset.

5 x Audio jacks

Ports & Connectivity

USB Port

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Back Ports

1 x TB Header (for add-on TB card)

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)

Bios & Technical Info

BIOS Type

128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX
30.5cm x 24.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
