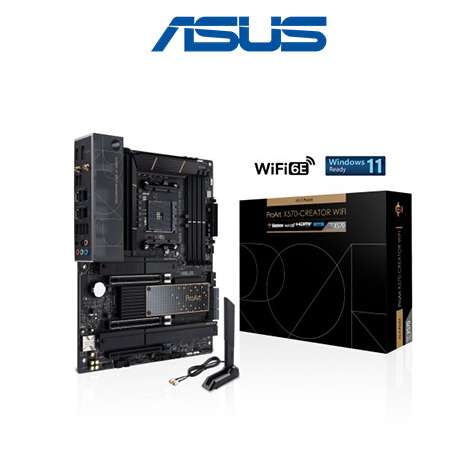

ASUS ProArt X570-CREATOR WIFI AMD Dual AM4 ATX Motherboard

Offer Price: BDT 39,450.00

Regular Price: BDT 43,450.00

Out of stock
Product Code: 1670

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model : ProArt X570-CREATOR WIFI
  • Chipset: AMD X570 Chipset
  • Memory Chanel: Dual
  • Warranty: 3 years





View More Info
  • Pc Builder, PC-Components
  • ASUS ProArt X570-CREATOR WIFI AMD AM4 ATX Motherboard price in Bd,ASUS ProArt X570-CREATOR WIFI AMD AM4 ATX Motherboard best price in Bangladesh

Basic Info

Brand Name

Asus

Model No.

ProArt X570-CREATOR WIFI

CPU Details

Chipset Brand

AMD

Chipset Model

AMD X570 Chipset

CPU  Supported

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

Generation

2nd/3rd /4th/5th  Generation

Memory

Memory Type

DDR4

Memory MHz

4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

Channel

Dual

Slot

4x DIMM

Max. Memory

128GB

Storage

Storage Interface

3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

Graphics Info

PCI Express Slot

AMD Ryzen 5000 Series and 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8**)*

AMD Ryzen 5000 G-Serie, 4000 G-Series and 2000 Series Processors
2 x PCIe 3.0 x16 (x16 or dual x8**)*

AMD Ryzen 2000 G-Series and 3000 G-Series Processors
1 x PCIe 3.0 x16 (x8 mode)*

AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

* Support PCIe bandwidth bifurcation for RAID on CPU function.
** PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default.
When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings.

Type

Integrated

Audio Chipset.

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

Ports & Connectivity

USB Port

2 x Intel Thunderbolt 4 ports

Back Ports

2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x W_PUMP+ header(s)
4 x 4-pin Chassis Fan header(s)

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Bios & Technical Info

BIOS Type

256 Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX Form Factor

12 inch x 9.6 inch (30.5 cm x 24.4 cm)

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

ASUS ProArt X570-CREATOR WIFI AMD Dual AM4 ATX Motherboard

ProArt X570-Creator WiFi employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital to design elements that provide the best foundation for content creation systems. A comprehensive array of powerful I/O ports including two Thunderbolt 4 ports plus 10 Gb and 2.5 Gb Ethernet ports enables quick data transfers and extensive storage options with flexible, hassle-free connectivity. The ASUS ProArt X570-CREATOR comes with onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast networking speeds along with improved capacity and better performance in dense wireless environments. The ProArt X570-Creator WiFi boasts an optimized power design layout and the memory performance needed to handle the prodigious power of the latest AMD Ryzen processors, enabling the most demanding multithreaded tasks such as 3D or video rendering and software compiling. It comes with Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control. It has been tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability. The ASUS ProArt X570-CREATOR WIFI comes with 3 years of warranty.

ASUS ProArt X570-CREATOR WIFI AMD Dual AM4 ATX Motherboard

ProArt X570-Creator WiFi employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital to design elements that provide the best foundation for content creation systems. A comprehensive array of powerful I/O ports including two Thunderbolt 4 ports plus 10 Gb and 2.5 Gb Ethernet ports enables quick data transfers and extensive storage options with flexible, hassle-free connectivity. The ASUS ProArt X570-CREATOR comes with onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast networking speeds along with improved capacity and better performance in dense wireless environments. The ProArt X570-Creator WiFi boasts an optimized power design layout and the memory performance needed to handle the prodigious power of the latest AMD Ryzen processors, enabling the most demanding multithreaded tasks such as 3D or video rendering and software compiling. It comes with Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control. It has been tested for 24/7 operation, validated for extensive compatibility, and equipped with SafeSlot for enhanced durability. The ASUS ProArt X570-CREATOR WIFI comes with 3 years of warranty.
