Product image
Product image

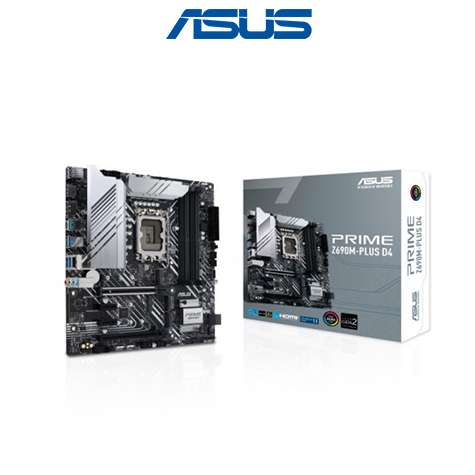

Asus Prime Z690M-PLUS D4 Intel DDR4 m-ATX Motherboard

Offer Price: BDT 22,200.00

Regular Price: BDT 23,550.00

Out of stock
Product Code: 1640

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model:  Prime Z690M-PLUS D4
  • Chipset: Z690
  • Memory Chanel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • Asus Prime Z690M-PLUS D4 Intel 12th Gen microATX Motherboard price in Bangladesh,Asus Prime Z690M-PLUS D4 Intel 12th Gen microATX Motherboard price in BD

Basic Info

Brand Name

Asus

Model No.

 Prime Z690M-PLUS D4

CPU Details

Chipset Brand

Intel

Chipset Model

Z690

CPU  Supported

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Generation

12th Generation

Memory

Memory Type

DDR4

Memory MHz

5333(OC) /5133(OC) /5000(OC) /4800(OC) /4700(OC) /4600(OC) /4500(OC) /4400(OC) /4266(OC) MHz

Channel

Dual

Slot

4 x DIMM

Max. Memory

128GB

Storage

Storage Interface

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10

Graphics Info

PCI Express Slot

Intel 12th Gen Processors
1 x PCIe 5.0/4.0/3.0 x16 slot

Intel Z690 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Type

Integrated

Audio Chipset.

Realtek 7.1 Surround Sound High
Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Ports & Connectivity

USB Port

Rear USB:Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Back Ports

Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector

Bios & Technical Info

BIOS Type

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Form Factor

microATX
24.4cm x 24.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

Asus Prime Z690M-PLUS D4 Intel DDR4 m-ATX Motherboard

 It comes with an enhanced power solution. 10+1 DrMOS, 4-pin+8-pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus Prime Z690M-PLUS D4 is supported with DDR4, PCIe 5.0, Intel 1 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header. The Asus Prime Z690M-PLUS D4 offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Asus Prime Z690M-PLUS D4 Intel DDR4 m-ATX Motherboard

 It comes with an enhanced power solution. 10+1 DrMOS, 4-pin+8-pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus Prime Z690M-PLUS D4 is supported with DDR4, PCIe 5.0, Intel 1 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header. The Asus Prime Z690M-PLUS D4 offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
