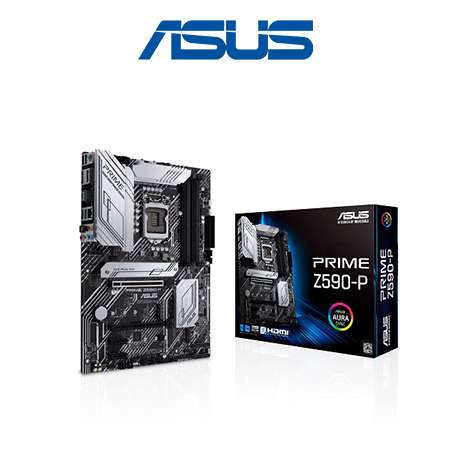

Asus Prime Z590-P Wi-Fi LGA1200 10th/ 11th gen, 2666MHz ATX Motherboard

Offer Price: BDT 22,000.00

Regular Price: BDT 24,200.00

Out of stock
Product Code: 1615

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model Name: Z590-P
  • Chipset: Intel Z590 Chipset
  • Memory Chanel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • Asus Prime Z590-P Wi-Fi LGA1200 11TH & 10th gen ATX Motherboard best price in Bangladesh,Asus Prime Z590-P Wi-Fi LGA1200 11TH & 10th gen ATX Motherboard price in BD

Basic Info

Brand Name

Asus

Model No.

Z590-P

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z590 Chipset

CPU  Supported

Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Generation

10th/ 11th Generation

Memory

Memory Type

DDR4 2666MHz

Memory MHz

5133(OC)/  5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Channel

Dual

Slot

4 x DDR4

Max. Memory

128GB

Storage

Storage Interface

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Graphics Info

PCI Express Slot

1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
- Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
* Supports PCIe bandwidth bifurcation for RAID on CPU function.

Type

Integrated

Audio Chipset.

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Ports & Connectivity

USB Port

Rear USB:Total 6 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Back Ports

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

Bios & Technical Info

BIOS Type

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Form Factor

30.5cm x 23.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

Asus Prime Z590-P Wi-Fi LGA1200 10th/ 11th gen, 2666MHz ATX Motherboard

ASUS OptiMem II helps for Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking. This exclusive motherboard is also featured with Next-gen connectivity like Intel WiFi 6, PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support and OP product mainImage.

This new Asus Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors, and also this ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. The ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. This motherboartd comes with Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Here, Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to stays cool and stable under intense workloads of your Rig. Here, An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. In this motherboard, A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers.I t has 3 years replacement warranty.

Asus Prime Z590-P Wi-Fi LGA1200 10th/ 11th gen, 2666MHz ATX Motherboard

ASUS OptiMem II helps for Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking. This exclusive motherboard is also featured with Next-gen connectivity like Intel WiFi 6, PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support and OP product mainImage.

This new Asus Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors, and also this ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. The ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. This motherboartd comes with Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Here, Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to stays cool and stable under intense workloads of your Rig. Here, An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. In this motherboard, A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers.I t has 3 years replacement warranty.
