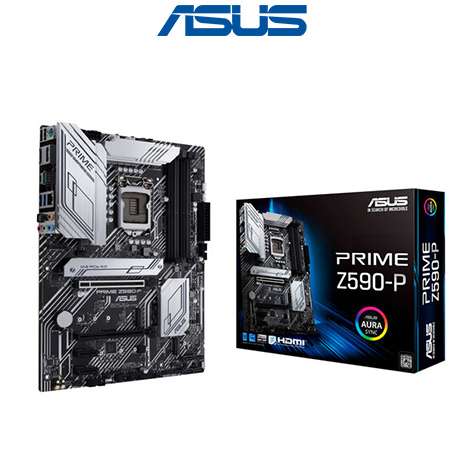

Asus Prime Z590-P 11th/ 10th Gen Motherboard

Offer Price: BDT 22,000.00

Regular Price: BDT 22,330.00

Out of stock
Product Code: 1680

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model: Prime Z590-P
  • Chipset: Intel Z590 Chipset
  • Memory Chanel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • Asus Prime Z590-P 11th and 10th Gen ATX Motherboard best price in BD,Asus Prime Z590-P 11th and 10th Gen ATX Motherboard price in Bangladesh

Basic Info

Brand Name

Asus

Model No.

Prime Z590-P

CPU Details

Chipset Brand

Intel

Chipset Model

Intel Z590 Chipset

CPU  Supported

Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Generation

10th /11th Generation

Memory

Memory Type

DDR4

Memory MHz

5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Channel

Dual

Slot

4 x DIMM

Max. Memory

128GB

Storage

Storage Interface

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports

Graphics Info

PCI Express Slot

1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
- Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
Intel Z590 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Type

Integrated

Audio Chipset.

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

Ports & Connectivity

USB Port

Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Back Ports

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

Bios & Technical Info

BIOS Type

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

Asus Prime Z590-P 11th/ 10th Gen Motherboard

 The motherboard has ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking. Prime Z590-P provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Asus Prime Z590-P comes with Next-gen connectivity, these are - PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support. The Prime Z590 series motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. The Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. An also the motherboard provide all the fundamentals to boost daily productivity. Proprietary connector augment the motherboard's link to the PSU, this motherboard comes with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector.

Asus Prime Z590-P 11th/ 10th Gen Motherboard

 The motherboard has ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking. Prime Z590-P provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Asus Prime Z590-P comes with Next-gen connectivity, these are - PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support. The Prime Z590 series motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. The Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. An also the motherboard provide all the fundamentals to boost daily productivity. Proprietary connector augment the motherboard's link to the PSU, this motherboard comes with 8-pin connector that pass 12 volts of power directly to the processors. 8-pin connector features solid pins that can handle more current than hollow-pin connector.
