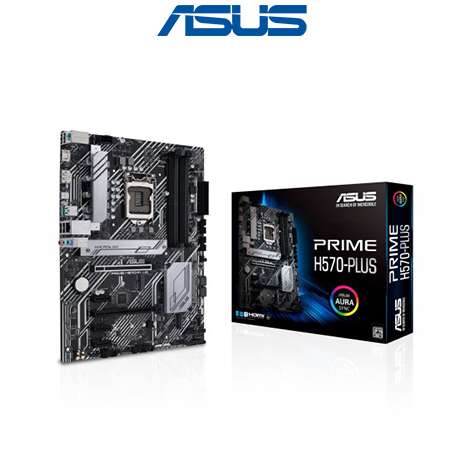

Asus PRIME H570-PLUS 11th Gen DDR4, Dual Motherboard

Offer Price: BDT 14,200.00

Regular Price: BDT 15,190.00

Out of stock
Product Code: 1679

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model: PRIME H570-PLUS
  • Chipset: Intel H570 Chipset
  • Memory Chanel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • Asus PRIME H570-PLUS 11th Gen ATX Motherboard price in BD,Asus PRIME H570-PLUS 11th Gen ATX Motherboard best price in Bangladesh

Basic Info

Brand Name

Asus

Model No.

PRIME H570-PLUS

CPU Details

Chipset Brand

Intel

Chipset Model

Intel H570 Chipset

CPU  Supported

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium® Gold and Celeron Processors

Generation

11th Generation

Memory

Memory Type

DDR4

Memory MHz

4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600

(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz

Channel

Dual

Slot

4 x DIMM

Max. Memory

128GB

Storage

Storage Interface

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
-Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® H570 Chipset
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)*
- 6 x SATA 6Gb/s ports

Graphics Info

PCI Express Slot

1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot*
- Intel® 11th processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16

Type

Integrated

Audio Chipset.

3 x Audio jacks

Ports & Connectivity

USB Port

Rear USB:Total 7 ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 2 port (1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)
Front USB:Total 8 ports
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports)

Back Ports

Fan and cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Bios & Technical Info

BIOS Type

194Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

Asus PRIME H570-PLUS 11th Gen DDR4, Dual Motherboard

The Asus PRIME H570-PLUS features a VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to another M.2 slot. It supports the careful routing of traces and vias to preserve signal integrity for improved memory stability. It comes with ultrafast connectivity. It has PCIe 4.0, Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C, and Thunderbolt 4 support. It comes with 5X Protection III, Multiple hardware safeguards for all-around protection. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Asus PRIME H570-PLUS 11th Gen DDR4, Dual Motherboard

The Asus PRIME H570-PLUS features a VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to another M.2 slot. It supports the careful routing of traces and vias to preserve signal integrity for improved memory stability. It comes with ultrafast connectivity. It has PCIe 4.0, Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C, and Thunderbolt 4 support. It comes with 5X Protection III, Multiple hardware safeguards for all-around protection. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
