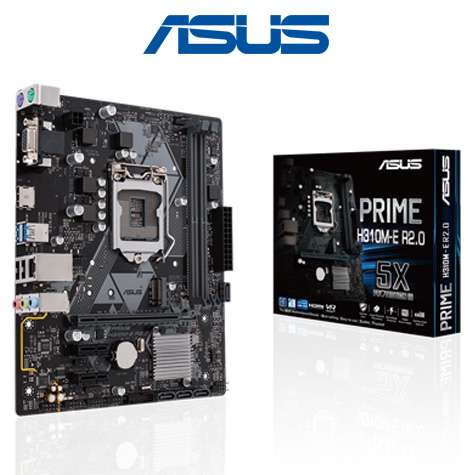

Asus PRIME H310M-E R2.0 8th Gen mATX SATA 6Gbps Motherboard

Offer Price: BDT 7,000.00

Regular Price: BDT 7,380.00

Out of stock
Product Code: 1593

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model Name: PRIME H310M-E
  • Chipset: Intel H310
  • Memory Chanel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • Asus PRIME H310M-E R2.0 8th Gen mATX SATA 6Gbps Motherboard price in bangladesh,Asus PRIME H310M-E R2.0 8th Gen mATX SATA 6Gbps Motherboard best price in bd

Basic Info

Brand Name

Asus

Model No.

PRIME H310M-E

CPU Details

Chipset Brand

Intel

Chipset Model

Intel H310

CPU  Supported

Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Generation

8th Generation

Memory

Memory Type

DDR4

Memory MHz

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered

Channel

Dual

Slot

DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Max. Memory

32GB

Storage

Storage Interface

1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1

SSD Expansion Slot

4 x SATA 6Gb/s port(s), gray,

Graphics Info

PCI Express Slot


Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz / 2560  x 1600  @ 60  Hz
- Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz
Maximum shared memory of 1024  MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Type

Integrated

Audio Chipset.

Realtek® ALC887 8-Channel High Definition Audio CODEC

Ports & Connectivity

USB Port

4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

Back Ports


1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
2 x USB 2.0
3 x Audio jack(s)

Bios & Technical Info

BIOS Type

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

Form Factor

mATX Form Factor

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty



Description

Asus PRIME H310M-E R2.0 8th Gen mATX SATA 6Gbps Motherboard

ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.5X Protection III: Multiple hardware safeguards for all-round protection.SUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably. ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applicationsThis motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.



Asus PRIME H310M-E R2.0 8th Gen mATX SATA 6Gbps Motherboard

ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.5X Protection III: Multiple hardware safeguards for all-round protection.SUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably. ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applicationsThis motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
