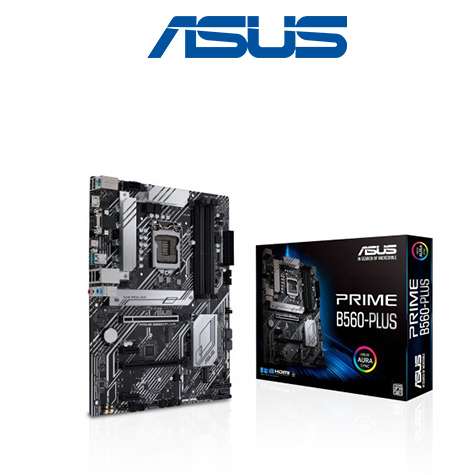

Asus Prime B560-PLUS Intel 10th/ 11th Gen, DDR4 ATX Motherboard

Offer Price: BDT 14,050.00

Regular Price: BDT 15,620.00

Out of stock
Product Code: 1612

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model Name: Prime B560-PLUS
  • Chipset: Prime B560-PLUS
  • Memory Chanel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard price in Bangladesh,Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard best price in Bangladesh



Basic Info

Brand Name

Asus

Model No.

 Prime B560-PLUS

CPU Details

Chipset Brand

Intel

Chipset Model


Intel B560 Express Chipset

CPU  Supported

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Generation

10th/ 11th Generation

Memory

Memory Type

DDR4

Memory MHz

2933/ 2800/ 2666/ 2400/ 2133 MHz

Channel

Dual

Slot

4 x DIMM

Max. Memory

128GB (32 GB single DIMM capacity)

Storage

Storage Interface

Intel 11th Gen Processors
- M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 )
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel B560 Chipset
- M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes)
- 6 x SATA 6Gb/s ports

Graphics Info

PCI Express Slot

Intel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16
- Intel10th processors support PCIe 3.0 x16
Intel B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots

Type

Integrated

Audio Chipset.

Realtek ALC897 7.1-Channel High Definition Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback

Ports & Connectivity

USB Port

2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x USB Type-C)
4 x USB 2.0 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Back Ports

Fan and cooling-related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

Bios & Technical Info

BIOS Type

128Mb Flash ROM, UEFI AMI BIOS

Form Factor

ATX: 30.5cm x 23.4cm

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty



Description

Asus Prime B560-PLUS Intel 10th/ 11th Gen, DDR4 ATX Motherboard

The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. The motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Asus Prime B560-PLUS 11th Gen Motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. A well-tuned enthusiast system deserves a matching aesthetic.

Asus Prime B560-PLUS Intel 10th/ 11th Gen, DDR4 ATX Motherboard

The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. The motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Asus Prime B560-PLUS 11th Gen Motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. A well-tuned enthusiast system deserves a matching aesthetic.
