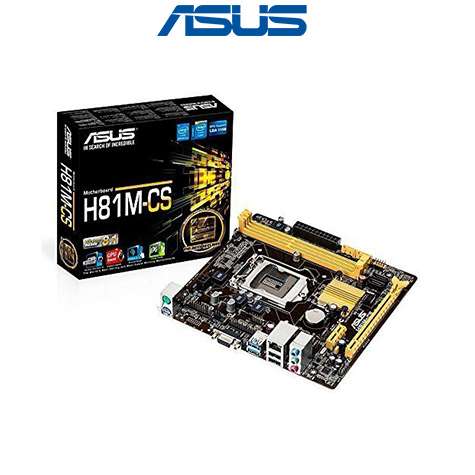

ASUS H81M-CS DDR3 Intel Motherboard

Offer Price: BDT 7,000.00

Regular Price: BDT 7,200.00

Out of stock
Product Code: 1676

* অনলাইন থেকে প্রডাক্ট অর্ডার এর পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সম্পর্কে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা হচ্ছে * 01965656300

  • Brand Name: Asus
  • Model: Prime H81M-CS
  • Chipset: Prime Intel H81
  • Memory Chanel: Dual
  • Warranty: 3 years
View More Info
  • Pc Builder, PC-Components
  • ASUS H81M-CS 4th Gen Intel Motherboard price in Bangladesh,ASUS H81M-CS 4th Gen Intel Motherboard best price in BD

Basic Info

Brand Name

Asus

Model No.

H81M-CS

CPU Details

Chipset Brand

Intel

Chipset Model

Intel H81

CPU  Supported

Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium /Celeron Processors
Supports Intel 22 nm CPU
Supports Intel Turbo Boost Technology 2.0
- The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Generation

4th Generation

Memory

Memory Type

DDR3

Memory MHz

1600/1333/1066 MHz

Channel

Dual

Slot

2 x DIMM

Max. Memory

16GB

Storage

Storage Interface

2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel Rapid Start Technology, Intel Smart Connect Technology

Graphics Info

PCI Express Slot

1 x PCIe 2.0 x16
1 x PCIe 2.0 x1

Type

Integrated

Audio Chipset.

Realtek® ALC887 8-Channel High Definition Audio CODEC

Ports & Connectivity

USB Port

2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
- 2 x USB 3.1 Gen 1 (blue)
- 2 x USB 2.0
- 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

Back Ports

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Chassis Intrusion connector(s)

Bios & Technical Info

BIOS Type

64 Mb Flash ROM, UEFI AMI BIOS

Form Factor

uATX Form Factor
7.5 inch x 7.0 inch ( 19 cm x 17.7 cm )

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty





Description

ASUS H81M-CS DDR3 Intel Motherboard

the ASUS H81M-CS motherboard, Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts by which you can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience. It is featured with 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture and support Intel Extreme Memory Profile (XMP). This motherboard comes with GPU Boost, it accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-wide upgrades for every use. In this motherboard, the ASUS Boot Setting provides better flexibility in customizing your PC’s startup process and you can shorten system boot-up time to 2-seconds for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up.

ASUS H81M-CS DDR3 Intel Motherboard

the ASUS H81M-CS motherboard, Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts by which you can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience. It is featured with 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture and support Intel Extreme Memory Profile (XMP). This motherboard comes with GPU Boost, it accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-wide upgrades for every use. In this motherboard, the ASUS Boot Setting provides better flexibility in customizing your PC’s startup process and you can shorten system boot-up time to 2-seconds for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up.
