Basic Info

Brand Name

Asus

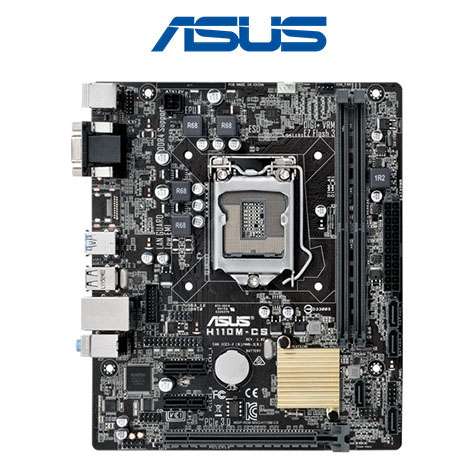

Model No.

H110M-CS

CPU Details

Chipset Brand

Intel

Chipset Model

Intel® H110

CPU  Supported

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Generation

6^th/7^th Generation

Memory

Memory Type

DDR4

Memory MHz

Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Channel

Dual

Slot

2 x DIMM

Max. Memory

16GB

Storage

Storage Interface

Intel® H110 Chipset :
4 x SATA 6Gb/s port(s), gray,
Intel® Rapid Storage Technology supports*2

Graphics Info

PCI Express Slot

1 x PCIe 3.0/2.0 x16 (x16 mode)
2 x PCIe 2.0 x1

Type

Integrated

Audio Chipset.

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC

Ports & Connectivity

USB Port

4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® H110 chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)

Back Ports

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis intrusion header

Bios & Technical Info

BIOS Type

128 Mb Flash ROM, UEFI AMI BIOS

Form Factor

uATX Form Factor
8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm )

OS Support

Windows 10

Warranty

Warranty

3 Years Replacement Warranty
